OUTDOOR INSULATED PIPE-MOUNTED / SPLIT CABINETS
Metal outdoor insulated pipe-mounted/split cabinets are designed to house I&C instruments and other equipment operating at positive temperatures. The cabinets protect the equipment from precipitation, dust, chemicals, physical damage, unauthorised access and theft. The design of the cabinets allows electric heaters and ventilation to be used to create a microclimate. This protects the equipment from low temperatures and condensation.
ADVANTAGES
Split thermal cabinets, with the specifications of non-split ones, make it possible to place instrumentation and automation directly on an operating pipeline, which reduces design, installation and commissioning costs. The cabinet can be split either horizontally or vertically.
LOCATION
The cabinets are installed on open sites, in explosive zones and in industrial premises. The customer chooses the cabinet according to the stated markings and industry safety rules. At the customer's request, the cabinets can be equipped with various sets of mounting elements and additional options.
DESIGN
The cabinets are made in UHL1 version per GOST 15150, designed to operate at temperatures from -60°C to +45°C. A climatic version of the cabinet design is possible to order. Degree of protection against climatic effects IP54 or IP65 per GOST 14254, depending on the customer's requirements. Cabinets made to order to the required dimensions, taking operating climatic conditions into account! Installation of equipment to create and maintain a climate (heating, ventilation, air conditioner).

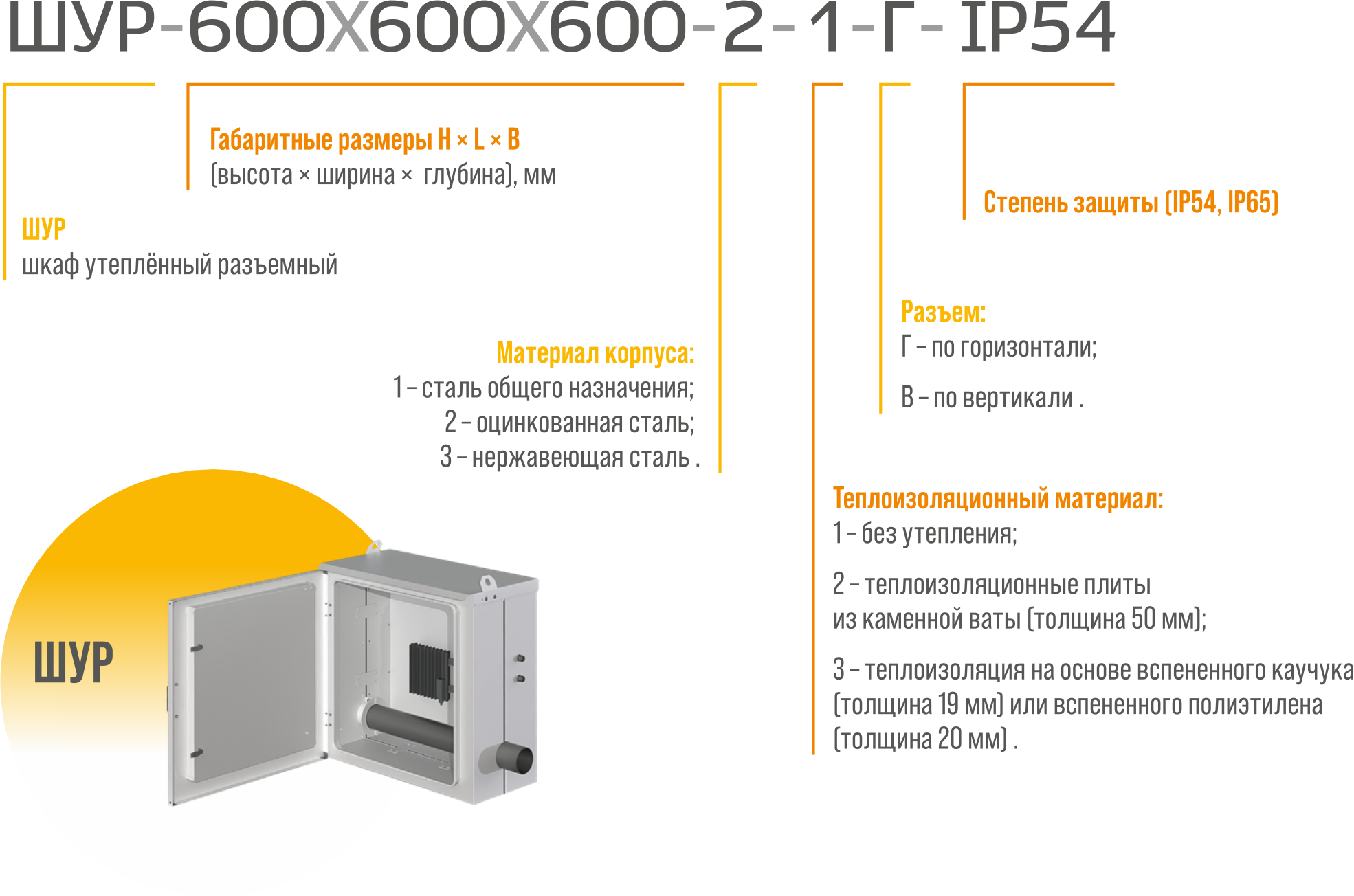

.png)
We make cabinets to order to the required dimensions.To determine the internal dimensions:.png)
