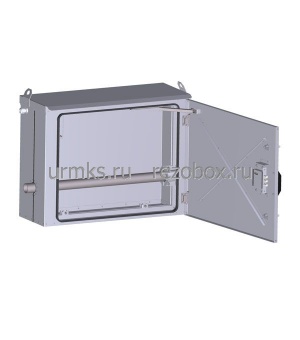

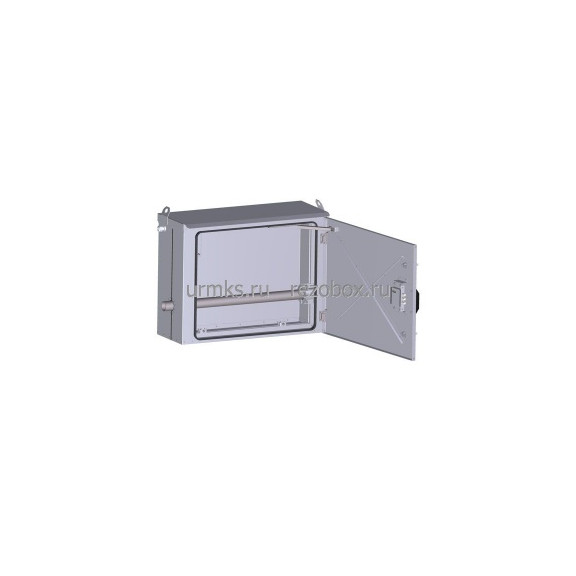

Sfera ShUR-700x900x350-2-1-V-IP65 cabinet
Characteristics
Placing equipment directly on an operating pipeline. The cabinet can be split either horizontally or vertically.
Dimensions
We make cabinets to order to the required dimensions. To determine the internal dimensions:
- with thermal insulation based on mineral wool boards, assume a wall thickness of 54 mm and a door thickness of 47 mm;
- with thermal insulation based on foamed rubber or foamed polyethylene, assume a wall and door thickness of 25 mm.
Price:
33 500 rubles*
- Description
- Equipment
| Overall dimensions (height × width × depth), mm | 700×900×350 |
| Type | Pipe-mounted cabinet, split vertically |
| Body material | Galvanised steel |
| Thermal insulation material | Uninsulated |
| Degree of protection | IP65 |
| Heater type | Unheated |
- Body made of galvanised steel. Metal thickness 1,5-3 mm;
- Mounting panel 200 × 200 mm;
- Canopy roof – 1 pcs;
- Holes and fixings for a pipe with an outer diameter of 57 mm;
- Special eye bolts (for lifting the cabinet with a hoist) – 2 pcs;
- Triangular-key locks (+ keys) – 2 pcs;
- Mortise lock – 1 pcs;
- Reliable fittings (hinges, locks, U-shaped door gasket, window gasket);
- Door with a catch in the open position – 1 pcs;
- Convenient plastic handle on the cabinet door – 1 pcs;
- Earthing wire between the body and the door – 1 pcs;
- On the left side wall of the cabinet body there is a plastic MG25 IP68 cable gland (cable d 13-18 mm) – 1 pcs;
- Polymer powder coating per the RAL catalogue.
