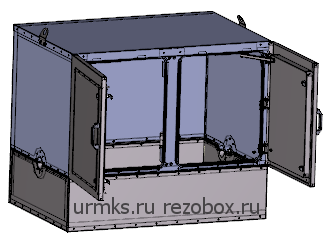

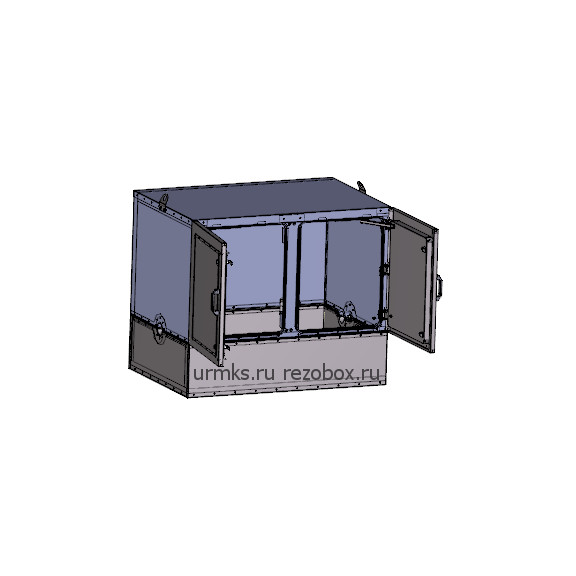

Sfera ShUR-1000x1200x800-1-2-IP54 cabinet
Placing equipment directly on an operating pipeline. The cabinet can be split either horizontally or vertically.
Dimensions
We make cabinets to order to the required dimensions. To determine the internal dimensions:
-
with thermal insulation based on mineral wool boards, assume a wall thickness of 54 mm and a door thickness of 47 mm;
-
with thermal insulation based on foamed rubber or foamed polyethylene, assume a wall and door thickness of 25 mm.
- Description
- Equipment
| Overall dimensions (height × width × depth), mm | 1000×1200×800 |
| Body material | General-purpose steel |
| Degree of protection | IP54 |
1. Body made of general-purpose steel. Metal thickness 1-3 mm;
2. Triangular-key locks (+ keys) – 4 pcs;
3. Thermal insulation material – mineral wool insulation boards (50 mm thick);
4. Reliable fittings (hinges, locks, U-shaped door gasket);
5. Door with a catch in the open position – 2 pcs;
6. Convenient plastic handle on the cabinet door – 2 pcs;
7. Pipe clamps 57 mm – 2 pcs;
8. Polymer powder coating per the RAL catalogue;
9. Packaging: bubble wrap + corrugated cardboard.
