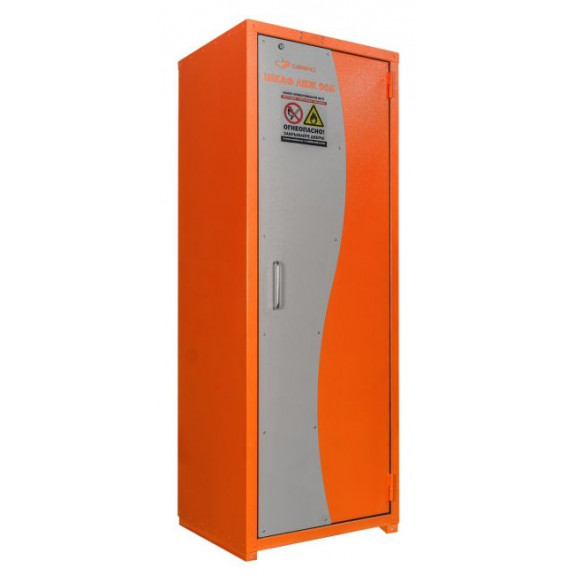

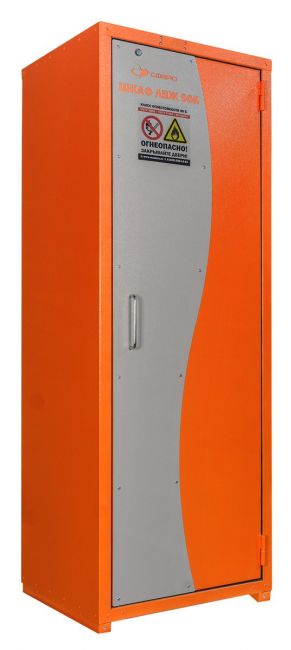

Sfera cabinet for storing flammable liquids–1–1950x660x660–1–1–0, fire resistance 90B (90 minutes)

• The fire resistance class of the Sfera FL cabinet is 90B (90 minutes); it is manufactured in accordance with the parameters of GOST R 50862-2012 and R 57384-2017. This is confirmed by the corresponding fire tests. TYPE 90 under the European standard EN 14470-1.
• Single-door, double-skin cabinet made of steel sheet 1-1,5 mm thick with a polymer powder coating.
• The fireproof heat-insulating material between the cabinet walls has a layered structure, which gives the design a high fire resistance class.
• In a fire, the double thermally expanding gasket fills the internal cavity of openings and holes, thus providing isolation from subsequent exposure to the environment.
• The cabinet is equipped with a ventilation system with fusible links for automatic blocking of the ventilation openings when the temperature rises to 70±10°C.
• Automatic closing and blocking of the doors is provided when the ambient temperature rises to 70±10°C.
• Sealedgalvanisedspill tray in the base of the cabinet with a rim 50 mm high. The tray is painted with a special paint resistantto chemical attack. Liquid capacity up to 5 litres.
• 3 height-adjustable metalgalvanisedshelves. Adjustment step – 77 mm. The shelves are painted with a special paint resistantto chemical attack.
• The design and coating of the shelves let spilled liquid drain into the tray.
• Lock system with key locking.
• Adjustable feet for levelling the cabinet.
• Terminal for connecting the cabinet to the protective earthing circuit.
• Colour – RAL 2004 (orange).

Packaging:bubble wrap + corrugated cardboard +wooden crate.

Documentation:

• Certificate of conformity
• Data sheet
