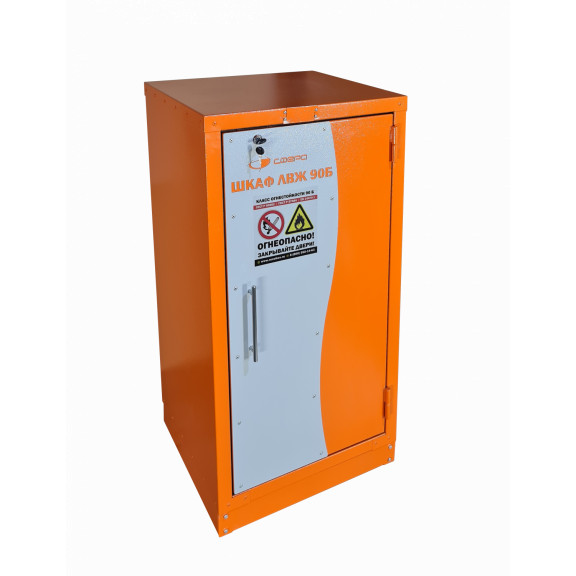

Sfera cabinet for storing flammable liquids FL-1-1220x600x520–1–1–0, fire resistance 90B (90 minutes)
In stock
- Description
- Equipment
Flammable liquid storage cabinetsare specialised cabinets designed for the safe storage of flammable liquids. Besides proper handling of flammable liquids, it is extremely important to strictly follow the concept of their safe storage.
The main role in implementing this concept is played byfireproof cabinets, for storing flammable liquids, which provide a high level of safety and also reduce the cost of subsequently restoring the premises after a fire.
Sfera cabinet for storing flammable liquids with 90B fire resistance
Sfera cabinet for storing flammable liquids with fire resistance class 90B. This means that if the cabinet door is closed, in case of fire it will keep the flammable liquids placed in it safe for 90 minutes:
Sfera cabinets for storing flammable liquids with fire resistance class 90B are made in accordance with GOST R 50862-2012 and R 57384-2017. This is confirmed by the corresponding fire tests. Equivalent of the TYPE 90 certificate under the European standard EN 14470-1.
Such cabinets are equipped with a ventilation system with fusible links for automatic blocking of the ventilation openings when the temperature rises to 70±10°C. Automatic blocking of the doors is provided when the ambient temperature rises to 70±10 °C.
- Fire resistance class 90B (90 minutes), made in accordance with the requirements of GOST R 57384-2017, GOST R 50862-2012 with exposure per GOST 34360-2017 and EN 14470-1 Class Type 90
- Single-door, double-skin cabinet made of steel sheet 1-1,5 mm thick with a polymer powder coating.
- The fireproof heat-insulating material between the cabinet walls has a layered structure, which gives the design a high fire resistance class.
- In a fire, the double thermally expanding gasket fills the internal cavity of openings and holes, thus providing isolation from subsequent exposure to hot and cold smoke/steam.
- The cabinet is equipped with a ventilation system with fusible links for automatic blocking of the ventilation openings when the temperature rises to 70±10°C.
- Automatic closing and blocking of the doors is provided when the ambient temperature rises to 70±10°C.
- Sealed galvanised spill tray in the base of the cabinet with a rim 35 mm high. The tray is painted with a special paint resistant to chemical attack. Liquid capacity up to 5 litres.
- 3 height-adjustable metal galvanised shelves. Adjustment step – 77 mm. The shelves are painted with a special paint resistant to chemical attack.
- The design and coating of the shelves let spilled liquid drain into the tray.
- Lock system with key locking.
- Adjustable feet for levelling the cabinet. (Optionally, wheels can be fitted. Swivel hardware wheels with bolt, diameter 120 mm.)
- Terminal for connecting the cabinet to the protective earthing circuit.
- Colour – RAL 2004 (orange).
- The cabinet door has a metal plate with the fire resistance class, applied by laser cutting. RAL 7035 (light grey)
Packaging: bubble wrap + corrugated cardboard + wooden crate.
Documentation:
- Certificate of conformity.
- Data sheet.
