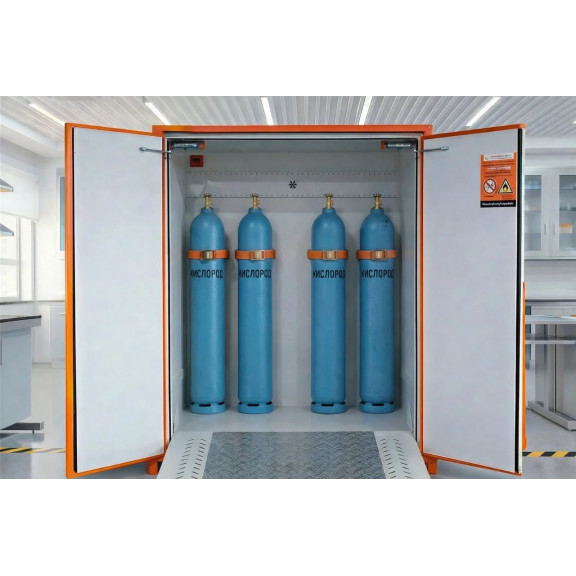

Sfera cabinet for storing cylinders–2–1950x1090x660–1–1–0, fire resistance 90B (90 minutes)

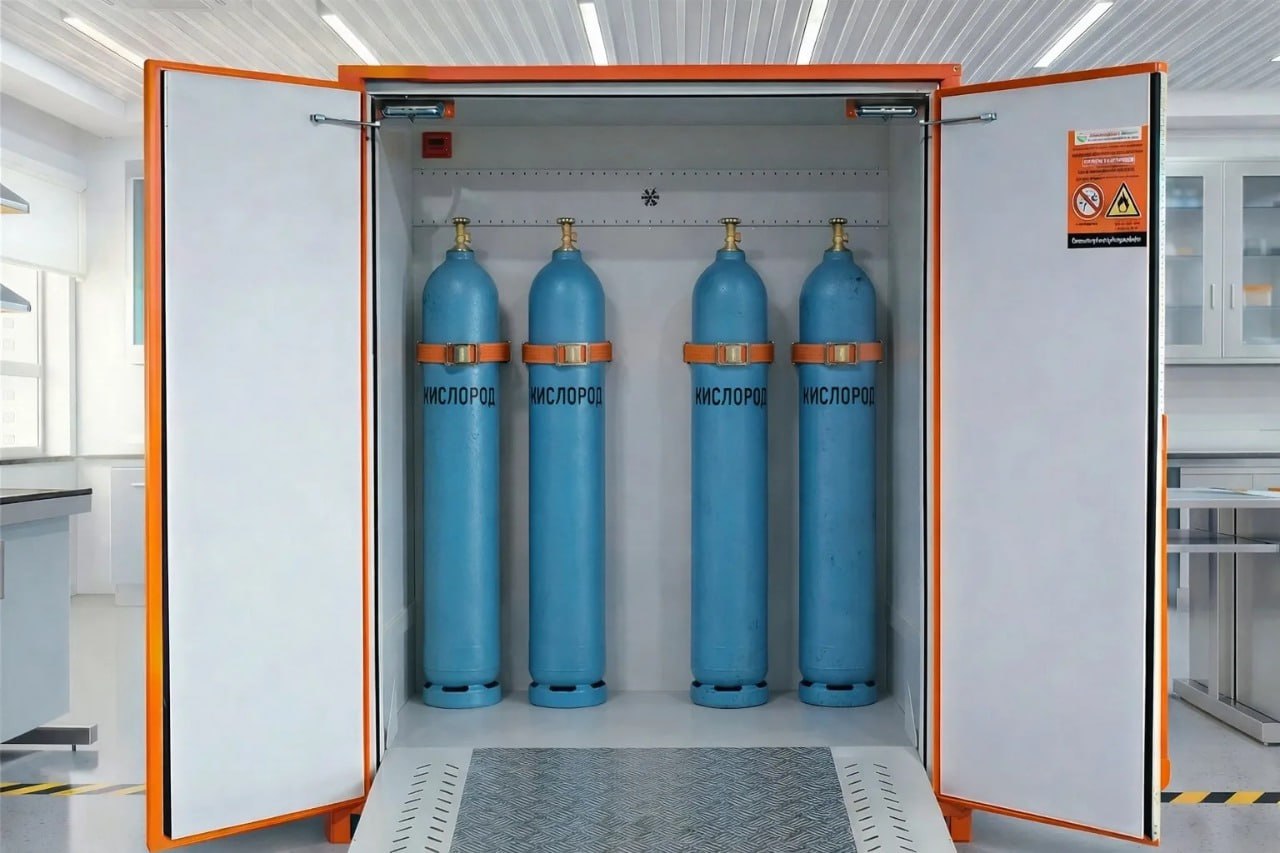

Sfera cabinet for storing cylinders with 90B fire resistance

Sfera cabinet for storing cylinders with fire resistance class 90B. This means that if the cabinet door is closed, in case of fire it will keep the cylinders placed in it safe for 90 minutes. Sfera cabinets for storing cylinders with fire resistance class 90B are made in accordance with GOST R 57384-2017. This is confirmed by the corresponding fire tests according to the GOST 30247.0-94 method.

Design features

Such cabinets are equipped with a ventilation system with fusible links for automatic blocking of the ventilation openings when the temperature rises to 70±10°C. Automatic blocking of the doors is provided when the ambient temperature rises to 70±10 °C, which prevents oxygen from getting inside and provides additional protection of the cylinders from heat.
