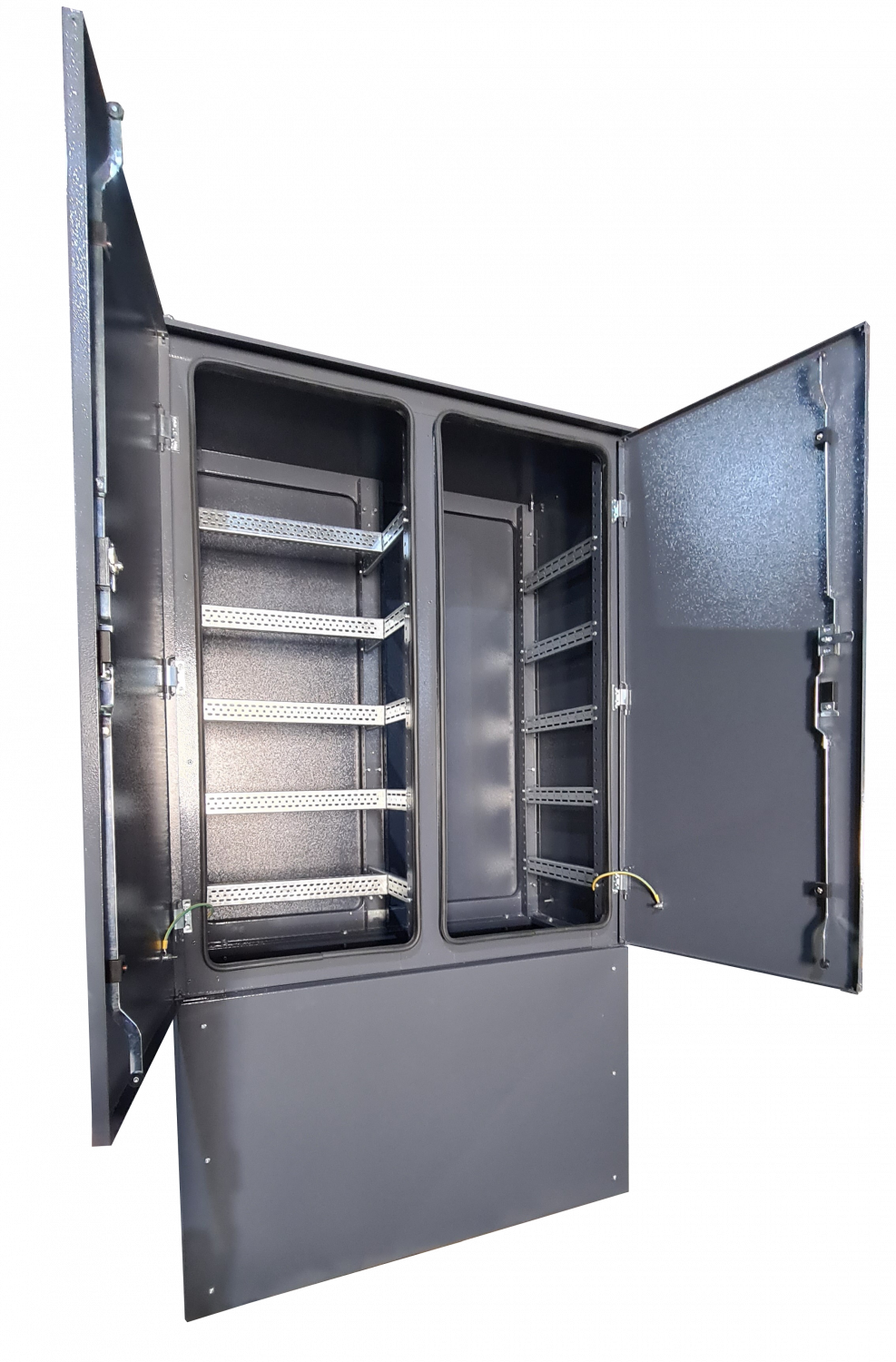

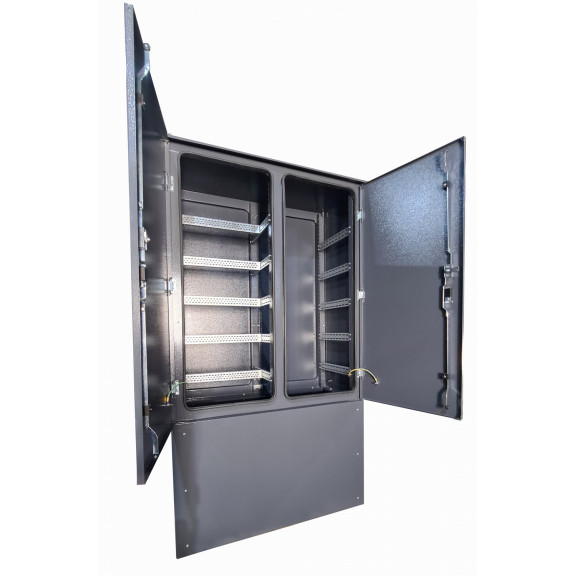

Sfera ShNU-1200x1000x400-IP65 cabinet
Characteristics
Cabinets made to order to the required dimensions, taking operating climatic conditions into account! Installation of equipment to create and maintain a climate (heating, ventilation, air conditioner).
To determine the internal dimensions:
- with thermal insulation based on mineral wool boards, assume a wall thickness of 54 mm and a door thickness of 47 mm;
- with thermal insulation based on foamed rubber or foamed polyethylene, assume a wall and door thickness of 25 mm.
Price:
65 000 rubles*
- Description
- Equipment
| Overall dimensions (height × width × depth), mm | 1200×1000×400 |
| Type | Outdoor metal cabinet (ShNU) |
| Body material | Galvanised steel |
| Thermal insulation material | Mineral wool insulation boards (50 mm thick, for the version with thermal insulation) |
| Degree of protection | IP65 |
The cabinet body package includes:
- Body made of galvanised steel. Metal thickness 1,5 mm;
- Screw-fixed rear wall of the cabinet.
- Polymer powder coating RAL 7024
- Canopy roof – 1 pcs;
- Espagnolette lock handle – 2 pcs.
- Pedestal 600 mm high (front side screw-fixed) – 1 pcs
- Mounting rail – 8 pcs.
- Packaging: bubble wrap, corrugated cardboard.
