Sfera ShUO-1500x1300x1000-2-2-1-IP54 cabinet

Name: Sfera ShUO-1500x1300x1000-2-2-1-IP54 cabinet
Brand: Сфера
SKU: 698
Price: 89975 RUB
Availability: InStock

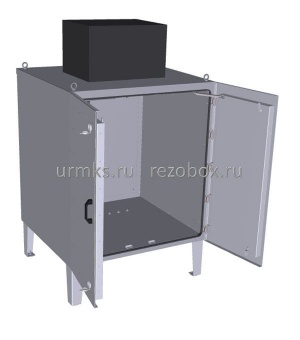

Sfera ShUO-1500x1300x1000-2-2-1-IP54 cabinet Photo 1

In stock

Characteristics

Cabinets made to order to the required dimensions, taking operating climatic conditions into account! Installation of equipment to create and maintain a climate (heating, ventilation, air conditioner).

To determine the internal dimensions:

with thermal insulation based on mineral wool boards, assume a wall thickness of 54 mm and a door thickness of 47 mm;
with thermal insulation based on foamed rubber or foamed polyethylene, assume a wall and door thickness of 25 mm.

Price: 89 975 rubles*

Catalog download

* - Цена, указанная на сайте, актуальна на момент размещения информации. Для получения актуального предложения отправьте заявку.

Description
Equipment

Overall dimensions (height × width × depth), mm	1500×1300×1000
Type	Insulated heated cabinet (ShUO)
Body material	Galvanised steel
Thermal insulation material	Mineral wool thermal insulation boards (50 mm thick)
Degree of protection	IP54
Heater type	Explosion-proof with thermostat

Body with overall dimensions (H×W×D) 1500*1300*100 mm, protection class IP54, galvanised metal, front thickness 2,0 mm, inner 1,5 mm.
Door with a catch in the open position and an opening handle – 2 pcs;
Feet 300 mm – 4 pcs;
Triangular-key locks – 4 pcs;
Mineral wool insulation 50 mm thick;
Oskar fittings;
Polymer powder coating: doors – RAL 7035 textured finish;
Galvanised mounting panel 1300×1100 mm – 1 pcs;
OSHA-R-10-F 1000 W explosion-proof heater with thermostat – 1 pcs;
Brass M 20 UT1,5 IP68 cable gland (cable d 10-14 mm) – 13 pcs;
3110000, Rittal SK temperature controller (thermostat) – 1 pcs.
3248000 SK Rittal roof-mounted air-to-air heat exchanger 66 W/K 595x362x440 mm, 230V – 1 pcs;
Packaging: bubble wrap + corrugated cardboard + crate.
