Sfera ShUO-1000x600x350-1-2-1-IP54 cabinet

Name: Sfera ShUO-1000x600x350-1-2-1-IP54 cabinet
Brand: Сфера
SKU: 717
Price: 31850 RUB
Availability: PreOrder

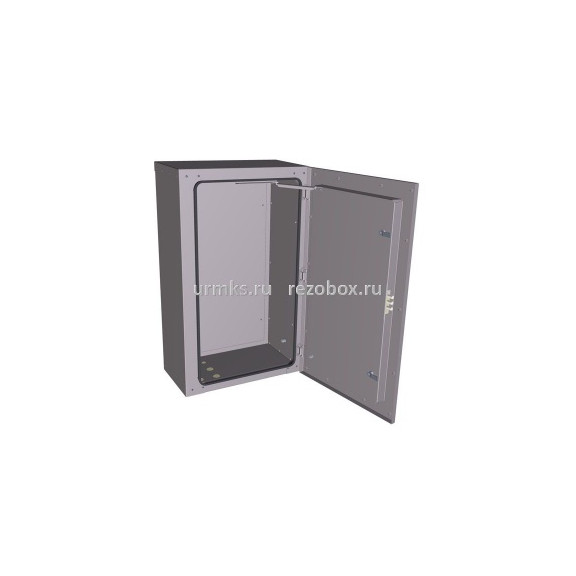

Sfera ShUO-1000x600x350-1-2-1-IP54 cabinet Photo 1

Characteristics

Cabinets made to order to the required dimensions, taking operating climatic conditions into account! Installation of equipment to create and maintain a climate (heating, ventilation, air conditioner).

To determine the internal dimensions:

with thermal insulation based on mineral wool boards, assume a wall thickness of 54 mm and a door thickness of 47 mm;
with thermal insulation based on foamed rubber or foamed polyethylene, assume a wall and door thickness of 25 mm.

Price: 31 850 rubles*

Catalog download

* - Цена, указанная на сайте, актуальна на момент размещения информации. Для получения актуального предложения отправьте заявку.

Description
Equipment

Overall dimensions (height × width × depth), mm	1000×600×350
Type	Insulated heated cabinet (ShUO)
Body material	Black steel
Thermal insulation material	Mineral wool thermal insulation boards (50 mm thick)
Degree of protection	IP54
Heater type	Explosion-proof

Body with overall dimensions (H×W×D) 1000*600*350 mm, protection class IP54, black steel, front thickness 1,5 mm, inner – 1,0 mm.
Insulation – mineral wool insulation boards (50 mm).
Grey polymer powder coating – RAL7035 textured finish.
Door gasket.
Oskar hinges.
Mounting panel 800×400 mm – 1 pcs.
Triangular-key lock – 2 pcs.
Mortise lock – 1 pcs.
Reinforced cabinet mounting strip.
OSHA 300 W explosion-proof heater – 1 pcs.
MG-20 cable gland, cable diameter 9-14 IP68 – 1 pcs.
MG-32 cable gland, cable diameter 16-24 mm IP68 – 5 pcs.
Packaging: bubble wrap + corrugated cardboard.
