Sfera ShUO-400x500x300-1-2-1-IP54 cabinet

Name: Sfera ShUO-400x500x300-1-2-1-IP54 cabinet
Brand: Сфера
SKU: 700
Price: 19200 RUB
Availability: PreOrder

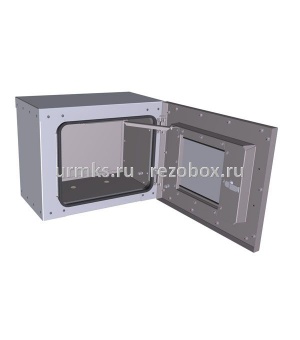

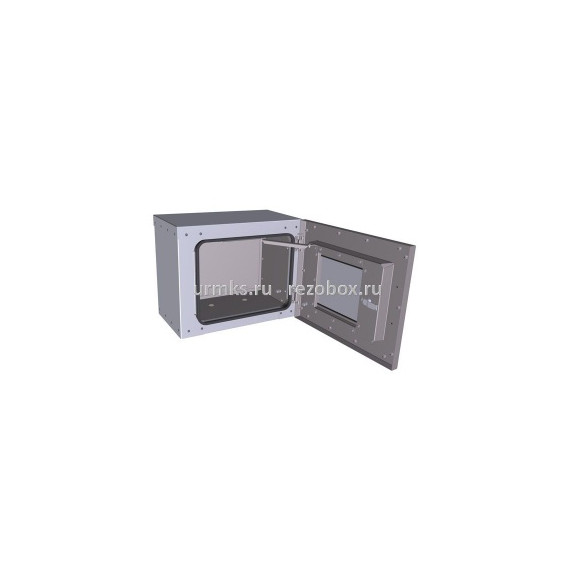

Sfera ShUO-400x500x300-1-2-1-IP54 cabinet Photo 1

Characteristics

Cabinets made to order to the required dimensions, taking operating climatic conditions into account! Installation of equipment to create and maintain a climate (heating, ventilation, air conditioner).

To determine the internal dimensions:

with thermal insulation based on mineral wool boards, assume a wall thickness of 54 mm and a door thickness of 47 mm;
with thermal insulation based on foamed rubber or foamed polyethylene, assume a wall and door thickness of 25 mm.

Price: 19 200 rubles*

Catalog download

* - Цена, указанная на сайте, актуальна на момент размещения информации. Для получения актуального предложения отправьте заявку.

Description
Equipment

Overall dimensions (height × width × depth), mm	400×500×300
Type	Insulated heated cabinet (ShUO)
Body material	Black steel
Thermal insulation material	Mineral wool thermal insulation boards (50 mm thick)
Degree of protection	IP54
Heater type	Explosion-proof

Body with overall dimensions (H×W×D) 400*500*300 mm, protection class IP54, front metal thickness 1,5 mm, inner 1,0 mm,black steel material
Insulation – mineral wool insulation boards (50 mm).
Grey polymer powder coating – RAL7035 textured finish.
Mounting panel.
Mounting (clamp) on a DN50 post – 1 set.
100 W heater – 1 pcs
D-profile door gasket.
Oskar hinges.
Lock with protective caps – 1 pcs.
Window – 1 pcs.
Packaging: bubble wrap + corrugated cardboard
