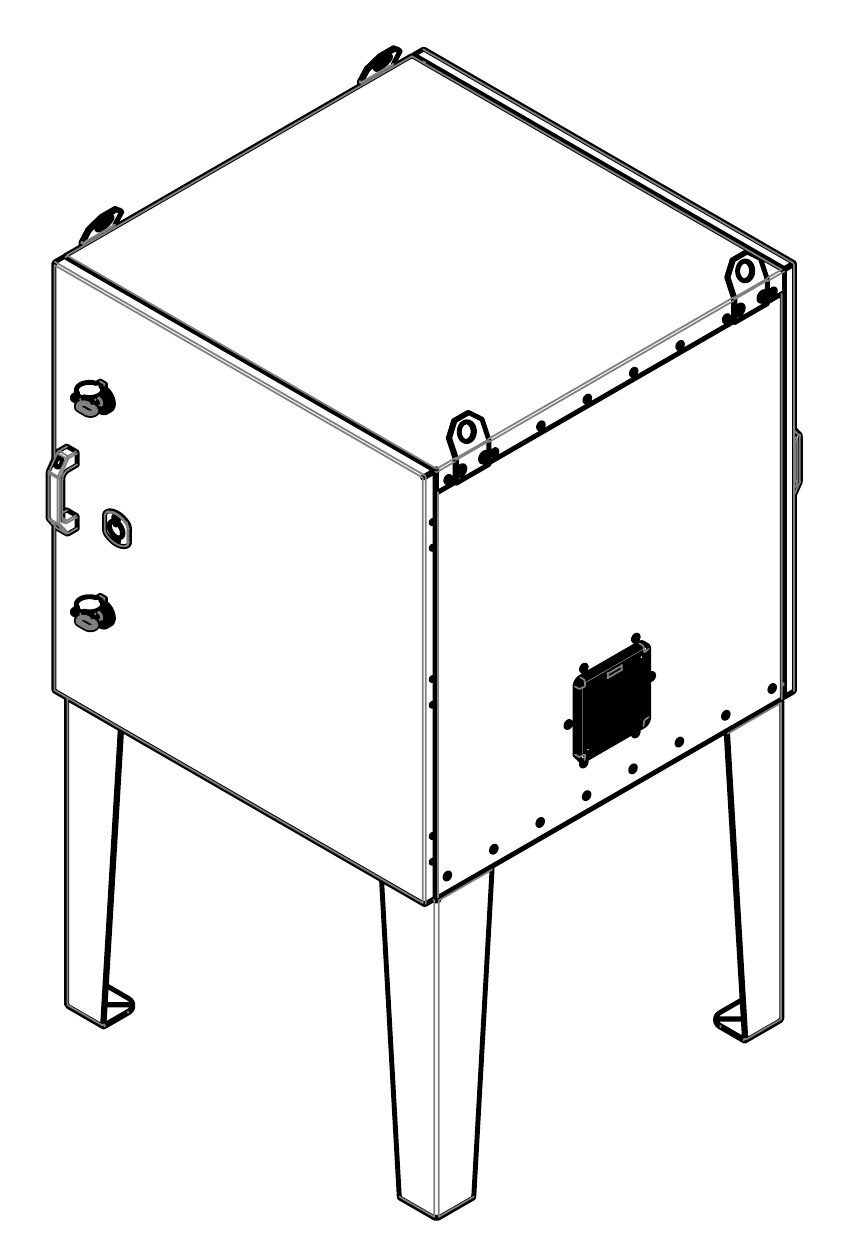

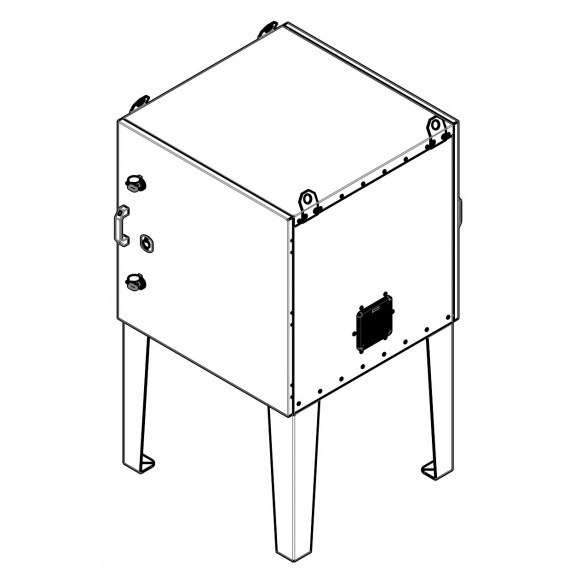

Sfera TShU 800×800×800 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

External dimensions of 800×800×800 mm provide sufficient internal volume to install a mounting panel or DIN rail with switching, low-current and telecommunication equipment, cable entries, terminal blocks and metering elements. This format is generally enough for one or two functional nodes and the associated switching without having to combine them in a larger body.

The wall mounting and IP54 protection rating allow the cabinet to be placed on building facades, posts, overpasses and steel structures in open-air conditions, including precipitation and dust. Mineral wool insulation reduces the effect of temperature changes on the equipment inside, and the compact size makes it possible to install the cabinet in tight conditions where a full-size floor-standing cabinet is not practical.

Where it is used:

• housing communication nodes and switching equipment on posts and masts;
• installing telecommunication boxes on facades of industrial and public buildings;
• setting up connection points for low-current networks on enterprise premises;
• housing video surveillance and dispatching system equipment;
• installing metering and automation points on utility networks in the open air;
• installing switching cabinets along linear facilities and utilities.
