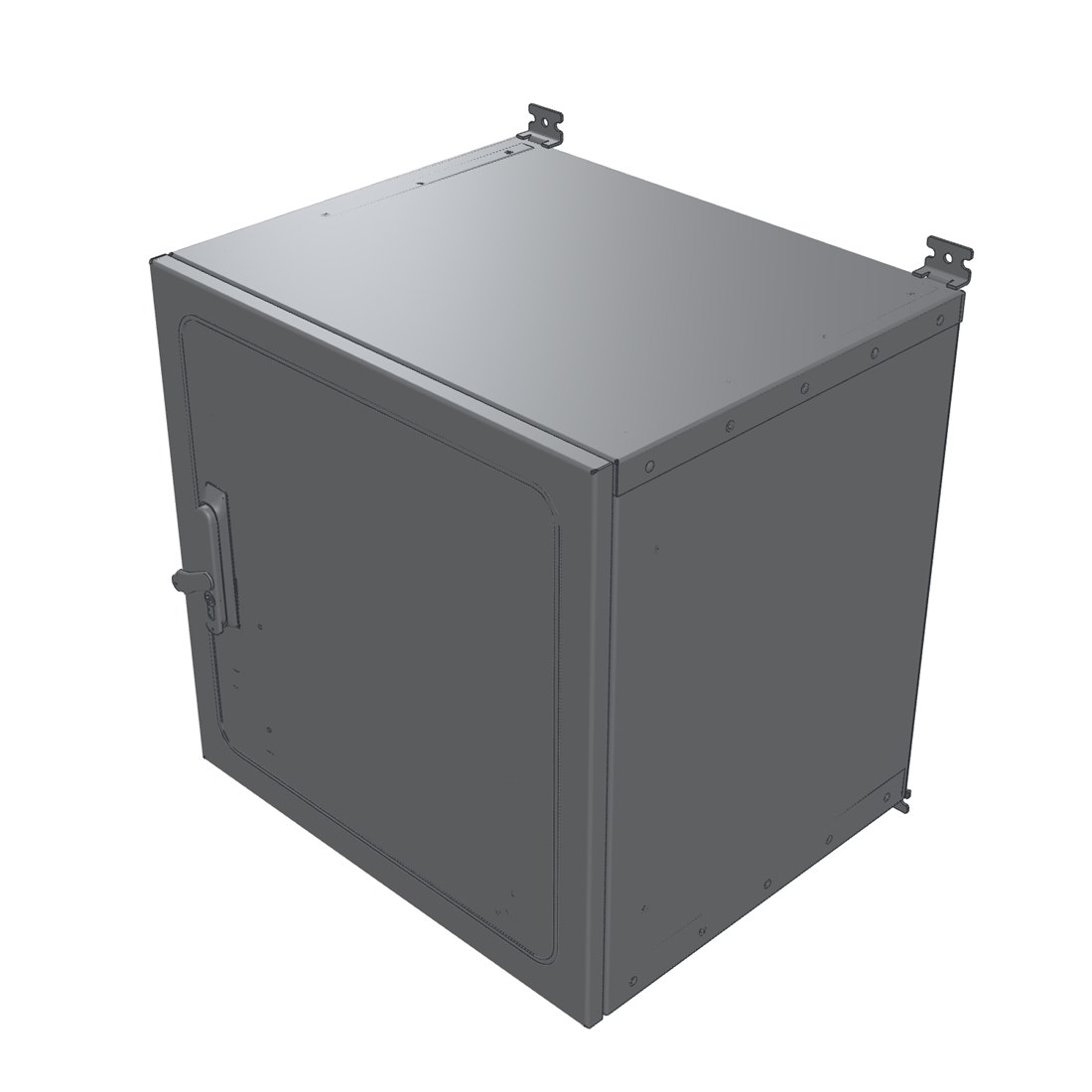

Sfera TShU 600×600×500 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The 600×600×500 mm dimensions allow a switch, optical patch panel, small patch panels, a power supply or low-power UPS, as well as cable entry and earthing elements, to be placed in the cabinet on a mounting panel or DIN rail. The cable glands provide organised and sealed cable entry, while the door with a gasket and lock protects the equipment from unauthorised access and the environment.

The wall mounting and compact size make the cabinet convenient to install on posts, building walls and steel structures without allocating a separate site. The polymer powder coating of the body and 50 mm mineral wool insulation improve resistance to outdoor operating conditions.

Where it is used:

• housing telecom operators' access nodes on posts and building facades;
• setting up connection points for fibre-optic lines (FTTx);
• installing video surveillance equipment at urban infrastructure facilities;
• housing controllers and switches of automation systems at remote facilities;
• setting up communication nodes along roads and railways;
• protecting compact telecommunication equipment at industrial and power facilities.
