Sfera ShUOV-600x800x400-1-3-IP54 cabinet

Name: Sfera ShUOV-600x800x400-1-3-IP54 cabinet
Brand: Сфера
SKU: 734
Price: 51500 RUB
Availability: PreOrder

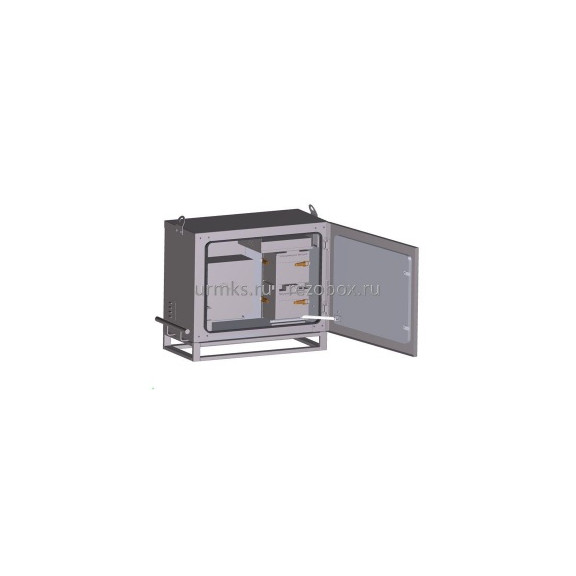

Sfera ShUOV-600x800x400-1-3-IP54 cabinet Photo 1

Characteristics

Cabinets made to order to the required dimensions, taking operating climatic conditions into account! Installation of equipment to create and maintain a climate (heating, ventilation, air conditioner).

To determine the internal dimensions:

with thermal insulation based on mineral wool boards, assume a wall thickness of 54 mm and a door thickness of 47 mm;
with thermal insulation based on foamed rubber or foamed polyethylene, assume a wall and door thickness of 25 mm.

Price: 51 500 rubles*

Catalog download

* - Цена, указанная на сайте, актуальна на момент размещения информации. Для получения актуального предложения отправьте заявку.

Description
Equipment

Overall dimensions (height × width × depth), mm	600×800×400.
Type	Insulated heated and ventilated cabinet (ShUOV)
Body material	General-purpose steel
Thermal insulation material	Thermal insulation based on foamed rubber (19 mm thick) or foamed polyethylene (20 mm thick)
Degree of protection	IP54
Heater type	Filter fan heater with built-in thermostat

Body made of general-purpose steel. Metal thickness 1-3 mm;
Special eye bolts (for lifting the cabinet with a hoist) – 4 pcs;
Triangular-key locks (+ keys) – 2 pcs;
Thermal insulation material – foamed rubber (19 mm thick);
Reliable fittings (hinges, locks, U-shaped door gasket, window gasket);
Set of supports 100 mm high of reinforced demountable construction;
Door with a catch in the open position – 1 pcs;
Carrying handle – 2 pcs;
Earthing wire between the body and the door – 1 pcs;
Mounting panel – 2 pcs (rear 420×320 mm, side 500×170 mm);
In the lower part of the cabinet there are holes of various diameters for cable outlets – 10 pcs;
Equipment set (fan heater 200 W – 1 pcs, fan with filter – 1 set, thermostat – 2 pcs);
Polymer powder coating per the RAL catalogue.
Packaging: bubble wrap + corrugated cardboard + wooden crate
