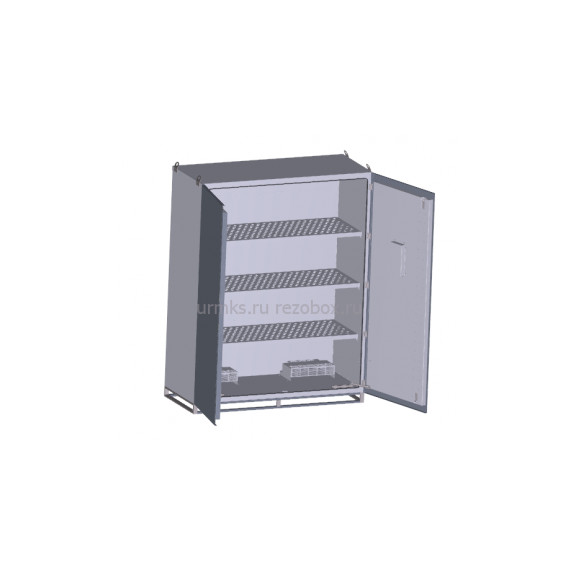

Sfera ShUOV-2150x1750x750-1-2-IP54 cabinet

1. Body made of general-purpose steel. Metal thickness 1-3 mm;

2. Triangular-key locks (+ keys) – 3 pcs;

3. Thermal insulation material – mineral wool insulation boards (50 mm thick);

4. Reliable fittings (hinges, locks, U-shaped door gasket);

5. Pedestal 100 mm high;

6. Door with a catch in the open position – 2 pcs;

7. Convenient plastic handle on the cabinet door – 1 pcs;

8. Earthing wire between the body and the door – 2 pcs;

9. Storage shelves, material: galvanised steel – 3 pcs.;

10. Polymer powder coating per the RAL catalogue.

11. Packaging: bubble wrap + corrugated cardboard;

Installed equipment:

12. Heating elements 3 kVA – 3 pcs.;

13. Delta DTD4848V0-1 pcs;

14. Temperature sensor – 1 pcs.;

15. ESS1-DA-025 single-phase solid-state relay (control 3-32 VDC, output current up to 25 A, voltage 40-440 VAC) – 1 pcs.;

16. Tangential fan – 2 pcs.;
