Sfera ShUOV-1200x800x500-2-2-1-IP54 cabinet

Name: Sfera ShUOV-1200x800x500-2-2-1-IP54 cabinet
Brand: Сфера
SKU: 759
Price: 72000 RUB
Availability: PreOrder

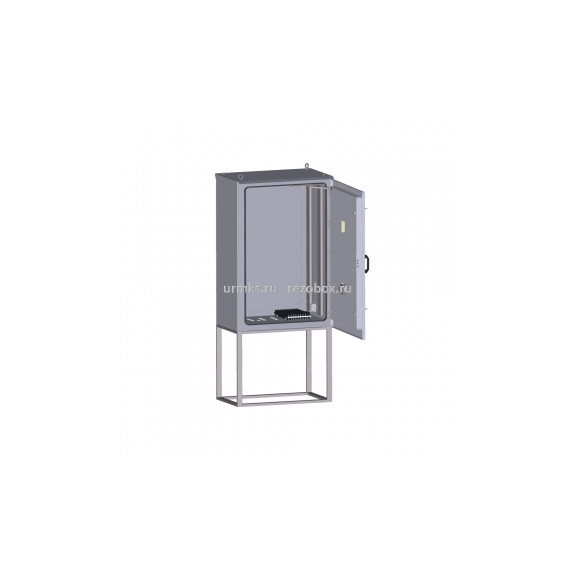

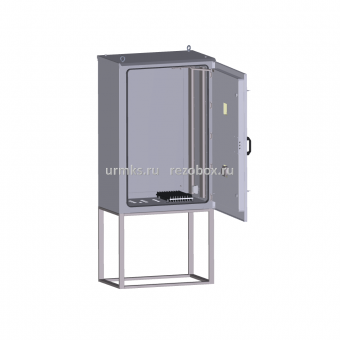

Sfera ShUOV-1200x800x500-2-2-1-IP54 cabinet Photo 1

Characteristics

Cabinets made to order to the required dimensions, taking operating climatic conditions into account! Installation of equipment to create and maintain a climate (heating, ventilation, air conditioner).

To determine the internal dimensions:

with thermal insulation based on mineral wool boards, assume a wall thickness of 54 mm and a door thickness of 47 mm;
with thermal insulation based on foamed rubber or foamed polyethylene, assume a wall and door thickness of 25 mm.

Price: 72 000 rubles*

Catalog download

* - Цена, указанная на сайте, актуальна на момент размещения информации. Для получения актуального предложения отправьте заявку.

Description
Equipment

Overall dimensions (height × width × depth), mm	1200 × 800 × 500
Type	Insulated heated and ventilated cabinet (ShUOV)
Body material	Galvanised steel
Thermal insulation material	Mineral wool thermal insulation boards (50 mm thick)
Degree of protection	IP54
Heater type	Explosion-proof

Body with overall dimensions (H×W×D) 1200*800*500 mm, protection class IP54, galvanised metal, front thickness 1,5 mm, inner 1,0 mm.
Insulation – mineral wool insulation boards (50 mm).
Grey polymer powder coating – RAL7035 textured finish.
Door gasket.
Oskar hinges.
Triangular-key lock – 2 pcs.
Mortise lock – 1 pcs.
Welded frame 600 mm high – 1 pcs.
Mounting panel – 1 pcs.
Mounting rails – 4 pcs.
OSHA 300 W heater – 1 pcs
PG-16 cable gland, cable diameter 9-13 mm IP54 – 10 pcs.
GHV1000220 filter fan – 1 pcs,
GHF10 outlet filter – 1 pcs.
FGT200 thermostat 0/+60 C N.O. – 1 pcs
Packaging: bubble wrap + corrugated cardboard + wooden crate
