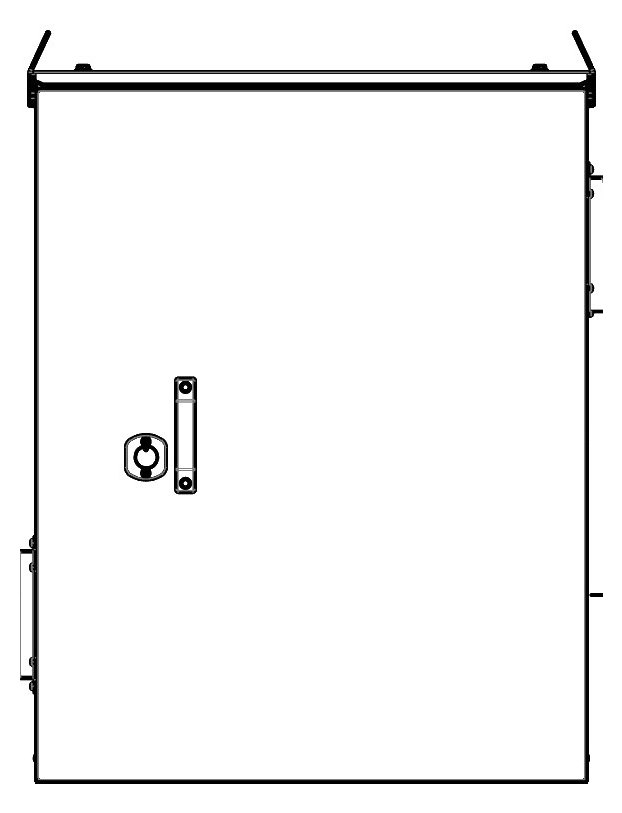

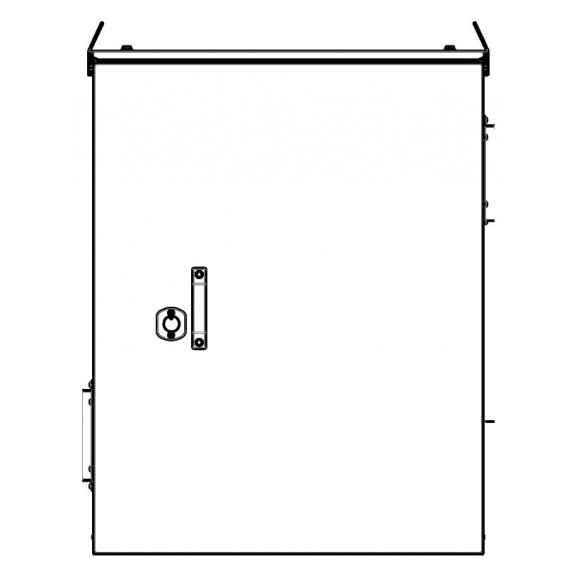

Sfera ShUO 900×700×400 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Heater with thermostat
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The external dimensions of 900×700×400 mm allow circuit breakers, contactors, relays, terminal blocks, metering devices and small controllers to be placed on the mounting panel and DIN rail with enough room for neat wiring through glands. The wall mounting and compact body depth make it possible to install the cabinet on building walls, posts and steel structures without protruding bases.

The insulated and heated version with a seal around the door perimeter keeps the electronics working through temperature changes and precipitation, and the galvanised body with powder coating protects against corrosion in long-term open-air operation. This format is convenient where a compact automation node needs to be placed at a stand-alone point without building a permanent room.

Where it is used:

• outdoor electricity metering nodes at transformer substations;
• automation panels of outdoor lighting systems for streets and roads;
• control cabinets for pumping stations and water supply nodes;
• housing controllers of video surveillance and communication systems on posts;
• automation panels of boiler houses and heating points outside buildings;
• distribution nodes at construction sites and production territories.
