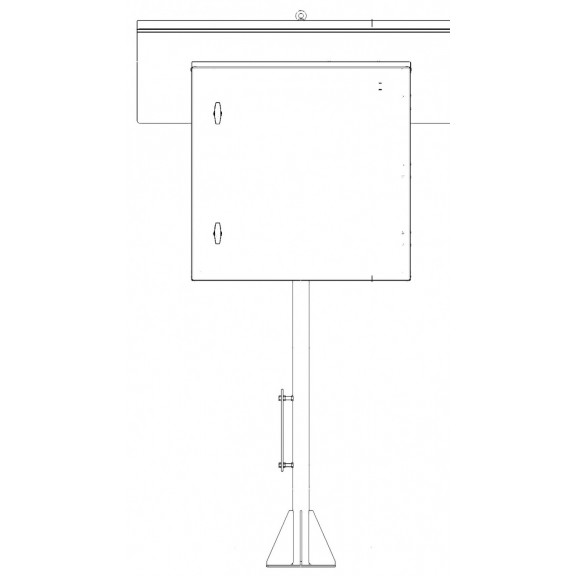

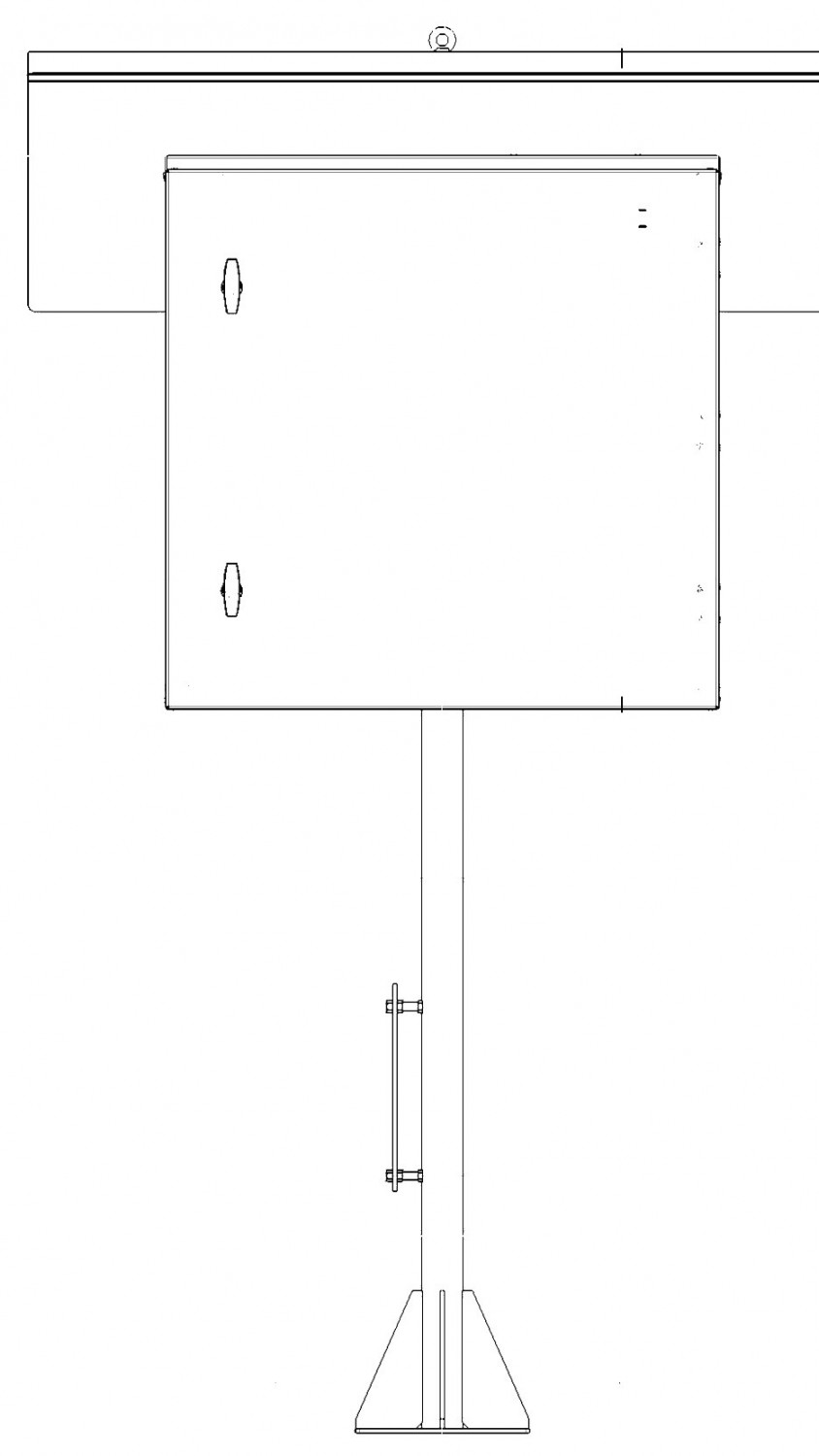

Sfera ShUO 800×800×400 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Heater with thermostat
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The dimensions of 800×800×400 mm allow circuit breakers, contactors, relays, terminal blocks, metering devices, low-power uninterruptible power supplies, as well as low-current communication and telemechanics equipment, to be placed on a mounting panel or DIN rail. This format suits tasks where more free space is needed for cable routing and for organising several functional zones inside one body, but the depth of 400 mm does not allow large power units to be installed.

The thermal insulation and the heater with a thermostat make it possible to operate the cabinet on open sites and along routes without additional heating of a room, and the gasketed door and cable glands provide protection from dust and splashes to rating IP54. The wall-mounted version simplifies installation on walls, posts and steel structures without a foundation.

Where it is used:

• electricity metering and distribution points at outdoor power supply facilities;
• automation cabinets for lighting of streets, roads and territories;
• communication and telemechanics equipment along pipeline routes and power lines;
• outdoor control stations for pumping and ventilation equipment;
• instrumentation at industrial and municipal infrastructure facilities;
• auxiliary-service panels of substations and distribution points.
