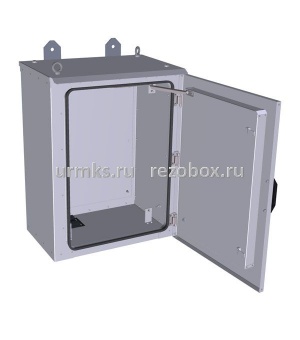

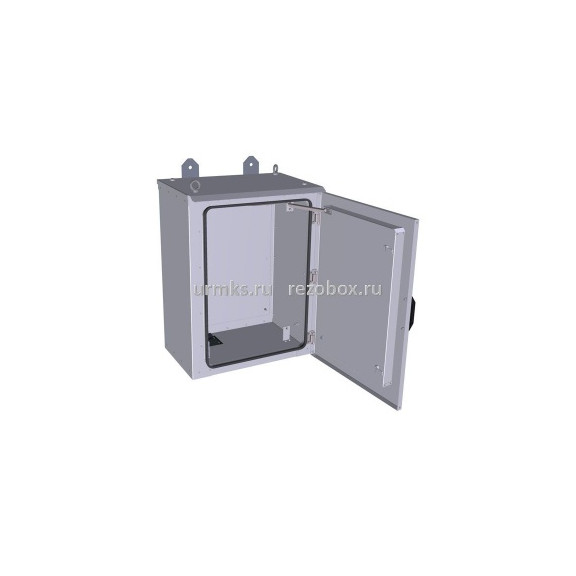

Sfera ShUO-800x600x400-2-2-2-IP54 cabinet
Characteristics
Cabinets made to order to the required dimensions, taking operating climatic conditions into account! Installation of equipment to create and maintain a climate (heating, ventilation, air conditioner).
To determine the internal dimensions:
- with thermal insulation based on mineral wool boards, assume a wall thickness of 54 mm and a door thickness of 47 mm;
- with thermal insulation based on foamed rubber or foamed polyethylene, assume a wall and door thickness of 25 mm.
Price:
41 050 rubles*
- Description
- Equipment
| Overall dimensions (height × width × depth), mm | 800×600×400 |
| Type | Insulated heated cabinet (ShUO) |
| Body material | Galvanised steel |
| Thermal insulation material | Mineral wool thermal insulation boards (50 mm thick) |
| Degree of protection | IP54 |
| Heater type | Non-explosion-proof with thermostat |
- Body made of galvanised steel. Metal thickness 1-3 mm;
- Canopy roof 600×400 mm made of 1,5 mm galvanised steel – 1 pcs;
- Special eye bolts (for lifting the cabinet with a hoist) – 2 pcs;
- Triangular-key locks (+ keys) – 2 pcs;
- Dust- and moisture-proof lock caps – 2 pcs;
- Thermal insulation material – mineral wool insulation boards (50 mm thick);
- Reliable fittings (hinges, locks, U-shaped door gasket, window gasket);
- Door with a catch in the open position – 1 pcs;
- Convenient plastic handle on the cabinet door – 1 pcs;
- Earthing wire between the body and the door – 1 pcs;
- Mounting panel 600×500 mm made of galvanised steel;
- Additional door 600×500 mm made of galvanised steel with a bolt;
- DJR-S300 heating element, 300 W 220 V AC – 1 pcs;
- Compact thermostat KTO 011 (1 NC, -10..+50°C) K102 – 1 pcs;
- Cable glands are installed in the lower part of the cabinet
- with PG16 bushings 5 pcs and PG21 – 2 pcs;
- Polymer powder coating per the RAL catalogue.
- Canopies made of 3 mm galvanised steel.
