Sfera ShUO-500x500x500-1-2-1-IP54 cabinet

Name: Sfera ShUO-500x500x500-1-2-1-IP54 cabinet
Brand: Сфера
SKU: 720
Price: 34950 RUB
Availability: PreOrder

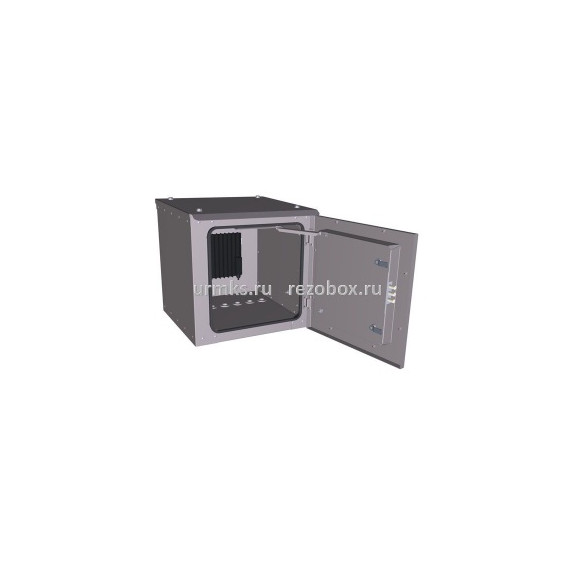

Sfera ShUO-500x500x500-1-2-1-IP54 cabinet Photo 1

Characteristics

Cabinets made to order to the required dimensions, taking operating climatic conditions into account! Installation of equipment to create and maintain a climate (heating, ventilation, air conditioner).

To determine the internal dimensions:

with thermal insulation based on mineral wool boards, assume a wall thickness of 54 mm and a door thickness of 47 mm;
with thermal insulation based on foamed rubber or foamed polyethylene, assume a wall and door thickness of 25 mm.

Price: 34 950 rubles*

Catalog download

* - Цена, указанная на сайте, актуальна на момент размещения информации. Для получения актуального предложения отправьте заявку.

Description
Equipment

Overall dimensions (height × width × depth), mm	500×500×500
Type	Insulated heated cabinet (ShUO)
Body material	General-purpose steel
Thermal insulation material	Mineral wool thermal insulation boards (50 mm thick)
Degree of protection	IP54

Body made of general-purpose steel. Metal thickness 1-3 mm;
Clamp on the rear wall for fixing to a pipe D-159 – 2 pcs;
Mortise locks (+ keys) – 1 pcs;
Canopy roof – 1 pcs;
Thermal insulation material – mineral wool insulation boards (50 mm thick);
Reliable fittings (hinges, locks, U-shaped door gasket);
Door with a catch in the open position – 1 pcs;
Convenient plastic handle on the cabinet door – 1 pcs;
Earthing wire between the body and the door – 1 pcs;
Mounting panel 300×300 – 1 pcs;
OSHA-R-1 100 W explosion-proof heater with built-in thermostat, mounted on supports in the lower part of the cabinet – 1 pcs;
In the lower part of the cabinet body there are explosion-proof brass cable glands M 20 UT1,5 IP68 (cable d 6,5-13,9 mm) with plugs – 1 pcs, and M25 for cable 11-17 mm – 1 pcs;
Polymer powder coating per the RAL catalogue.
Packaging: bubble wrap + corrugated cardboard + wooden crate
