Sfera ShUO-2000x1000x500-1-2-1-IP54 cabinet

Name: Sfera ShUO-2000x1000x500-1-2-1-IP54 cabinet
Brand: Сфера
SKU: 764
Price: 86500 RUB
Availability: PreOrder

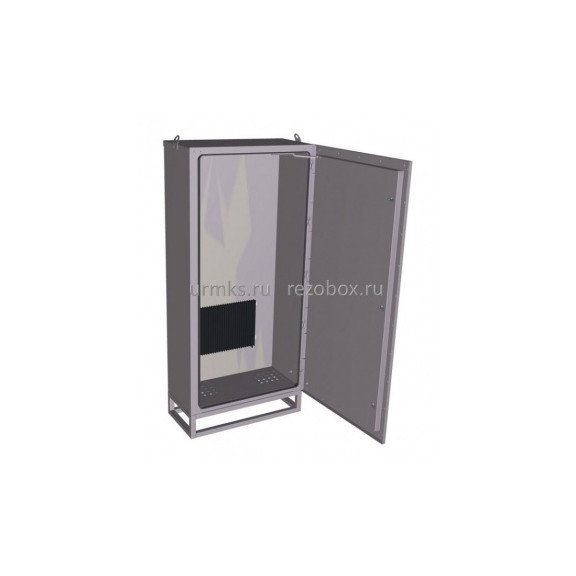

Sfera ShUO-2000x1000x500-1-2-1-IP54 cabinet Photo 1

Characteristics

Cabinets made to order to the required dimensions, taking operating climatic conditions into account! Installation of equipment to create and maintain a climate (heating, ventilation, air conditioner).

To determine the internal dimensions:

with thermal insulation based on mineral wool boards, assume a wall thickness of 54 mm and a door thickness of 47 mm;
with thermal insulation based on foamed rubber or foamed polyethylene, assume a wall and door thickness of 25 mm.

Price: 86 500 rubles*

Catalog download

* - Цена, указанная на сайте, актуальна на момент размещения информации. Для получения актуального предложения отправьте заявку.

Description
Equipment

Overall dimensions (height × width × depth), mm	2000×1000×500
Type	Insulated heated cabinet (ShUO)
Body material	Black steel
Thermal insulation material	Mineral wool thermal insulation boards (50 mm thick)
Degree of protection	IP54
Heater type	Explosion-proof with thermostat

Body with overall dimensions (H×W×D) 2000*1000*500 mm, protection class IP54, front metal thickness 2,0 mm, inner 1,0 mm
Insulation – mineral wool, 50 mm thick
Grey polymer powder coating – RAL7035 textured finish
Door gasket
Oskar hinges
Triangular-key lock – 3 pcs
Frame 200 mm high
OSHA-R-10 1000 W heater – 1 pcs
PG-16 gland (9-13 mm cable) – 1 pcs
PG-13,5 gland (7-11 mm cable) – 10 pcs
Packaging: bubble wrap + corrugated cardboard + wooden crate
