Sfera ShUO-1800x1600x400-1-3-1-IP65 cabinet

Name: Sfera ShUO-1800x1600x400-1-3-1-IP65 cabinet
Brand: Сфера
SKU: 766
Price: 93000 RUB
Availability: PreOrder

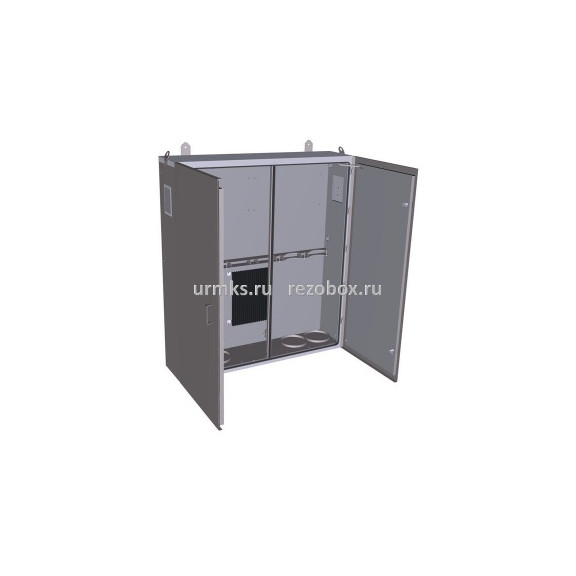

Sfera ShUO-1800x1600x400-1-3-1-IP65 cabinet Photo 1

Characteristics

Cabinets made to order to the required dimensions, taking operating climatic conditions into account! Installation of equipment to create and maintain a climate (heating, ventilation, air conditioner).

To determine the internal dimensions:

with thermal insulation based on mineral wool boards, assume a wall thickness of 54 mm and a door thickness of 47 mm;
with thermal insulation based on foamed rubber or foamed polyethylene, assume a wall and door thickness of 25 mm.

Price: 93 000 rubles*

Catalog download

* - Цена, указанная на сайте, актуальна на момент размещения информации. Для получения актуального предложения отправьте заявку.

Description
Equipment

Overall dimensions (height × width × depth), mm	1800×1600×400
Type	Insulated heated cabinet (ShUO)
Body material	General-purpose steel
Thermal insulation material	thermal insulation based on foamed rubber (19 mm thick).
Degree of protection	IP65
Heater type	Explosion-proof with thermostat

Body made of general-purpose steel. Metal thickness 1,5-3 mm;
Cabinet with a double-leaf door;
The cabinet is equipped with cradles and fixings for 4 oxygen cylinders (volume 40l, diameter of the cylindrical part 219mm);
Canopies for wall mounting – 2 pcs;
Special eye bolts (for lifting the cabinet with a hoist) – 2 pcs;
Triangular-key locks (+ keys) on the right leaf of the door – 2 pcs;
Espagnolette bolts for closing the left leaf of the door – 2 pcs;
Thermal insulation based on foamed rubber (19 mm).
Thermal insulation material for insulating the cabinet floor – mineral wool insulation boards (50 mm thick);
Reliable fittings (hinges, locks, cabinet gasket);
Door with a catch in the open position – 2 pcs;
Convenient metal handle on the cabinet door – 2 pcs;
Earthing wire between the body and the door – 1 pcs;
On the sides of the body there are ventilation grilles with slides to maintain the required IP rating;
OSHA-R-10 1000 W explosion-proof heater with built-in thermostat, mounted on the rear wall of the cabinet – 1 pcs;
Polymer powder coating per the RAL catalogue.
