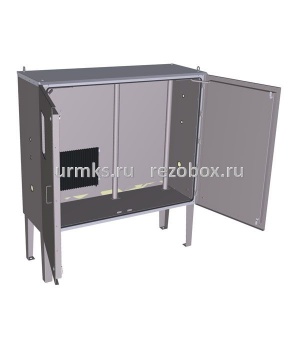

Sfera ShUO-1400x1700x600-1-2-1-IP54 cabinet

Name: Sfera ShUO-1400x1700x600-1-2-1-IP54 cabinet
Brand: Сфера
SKU: 768
Price: 99900 RUB
Availability: PreOrder

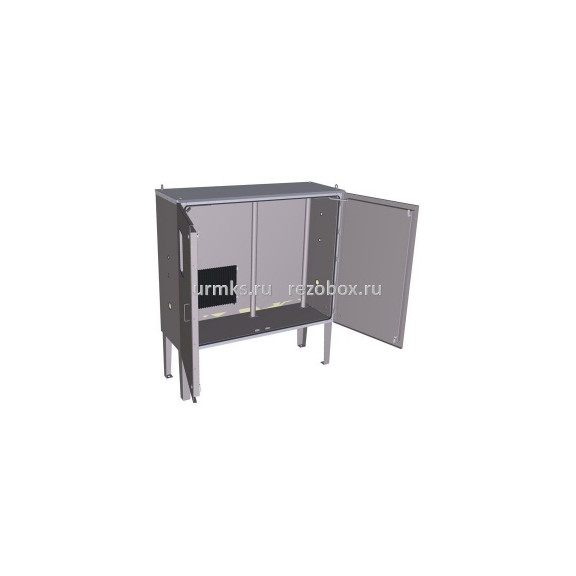

Sfera ShUO-1400x1700x600-1-2-1-IP54 cabinet Photo 1

Characteristics

Cabinets made to order to the required dimensions, taking operating climatic conditions into account! Installation of equipment to create and maintain a climate (heating, ventilation, air conditioner).

To determine the internal dimensions:

with thermal insulation based on mineral wool boards, assume a wall thickness of 54 mm and a door thickness of 47 mm;
with thermal insulation based on foamed rubber or foamed polyethylene, assume a wall and door thickness of 25 mm.

Price: 99 900 rubles*

Catalog download

* - Цена, указанная на сайте, актуальна на момент размещения информации. Для получения актуального предложения отправьте заявку.

Description
Equipment

Overall dimensions (height × width × depth), mm	1400×1700×600
Type	Insulated heated cabinet (ShUO)
Body material	Black steel
Thermal insulation material	Mineral wool thermal insulation boards (50 mm thick)
Degree of protection	IP54
Heater type	Explosion-proof with thermostat

Body with overall dimensions (H×W×D) 1400*1700*600 mm, protection class IP54, front metal thickness 1,5 mm, inner 1,0 mm;
Canopy roof – 1 pcs;
Door with a catch in the open position and an opening handle – 2 pcs;
Feet 500 mm – 4 pcs;
Triangular-key locks – 4 pcs;
Mineral wool insulation 50 mm thick;
Packaging: bubble wrap + corrugated cardboard + crate;
Oskar fittings;
Polymer powder coating: doors – RAL 7004 textured finish, body outside – RAL 5015 textured finish, inside – 7035 textured finish;
Window 350×240 – 1 pcs;
OSHA-R-10-F 1000 W explosion-proof heater with thermostat – 1 pcs;
MG20 glands – 5 pcs;
Pipe stand for instruments D57 – 3 pcs;
KS8Ex junction box (2 cable entries) – 1 pcs
Packaging: bubble wrap + corrugated cardboard + wooden crate
