Sfera ShUO-1245x755x310-2-2-1-IP54 cabinet

Name: Sfera ShUO-1245x755x310-2-2-1-IP54 cabinet
Brand: Сфера
SKU: 736
Price: 53100 RUB
Availability: PreOrder

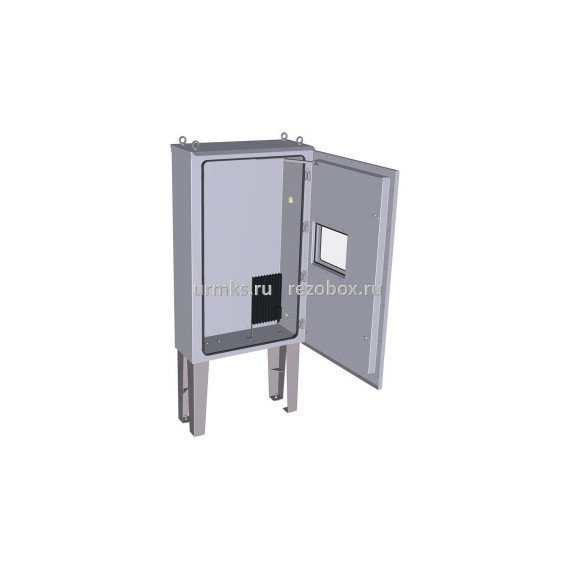

Sfera ShUO-1245x755x310-2-2-1-IP54 cabinet Photo 1

Characteristics

Cabinets made to order to the required dimensions, taking operating climatic conditions into account! Installation of equipment to create and maintain a climate (heating, ventilation, air conditioner).

To determine the internal dimensions:

with thermal insulation based on mineral wool boards, assume a wall thickness of 54 mm and a door thickness of 47 mm;
with thermal insulation based on foamed rubber or foamed polyethylene, assume a wall and door thickness of 25 mm.

Price: 53 100 rubles*

Catalog download

* - Цена, указанная на сайте, актуальна на момент размещения информации. Для получения актуального предложения отправьте заявку.

Description
Equipment

Overall dimensions (height × width × depth), mm	1245×755×310
Type	Insulated heated cabinet (ShUO)
Body material	Galvanised steel
Thermal insulation material	Mineral wool thermal insulation boards (50 mm thick)
Degree of protection	IP54
Heater type	Explosion-proof with thermostat

Body made of galvanised steel. Metal thickness 1-3 mm;
Canopy roof – 1 pcs;
Special eye bolts (for lifting the cabinet with a hoist) – 4 pcs;
Triangular-key locks (+ keys) – 2 pcs;
Thermal insulation material – mineral wool insulation boards (50 mm thick);
Reliable fittings (hinges, locks, U-shaped door gasket, window gasket);
Set of supports 500 mm high of reinforced demountable construction;
Door with a catch in the open position – 1 pcs;
Convenient plastic handle on the cabinet door – 1 pcs;
Earthing wire between the body and the door – 1 pcs;
Inspection window 320×250×32 mm – 1 pcs;
In the lower part of the cabinet body there are explosion-proof brass cable glands M 20 UT1,5 IP68 (cable d 6,5-13,9 mm) with plugs – 2 pcs;
On the right side wall there are holes for membrane glands M40 mm – 1 pcs, M 20 mm – 1 pcs;
OSHA-R-3 300 W explosion-proof heater with built-in thermostat, mounted on supports in the lower part of the cabinet – 1 pcs;
Polymer powder coating per the RAL catalogue.
