Sfera ShUO-1200x600x400-2-2-2-IP65 cabinet

Name: Sfera ShUO-1200x600x400-2-2-2-IP65 cabinet
Brand: Сфера
SKU: 727
Price: 46900 RUB
Availability: PreOrder

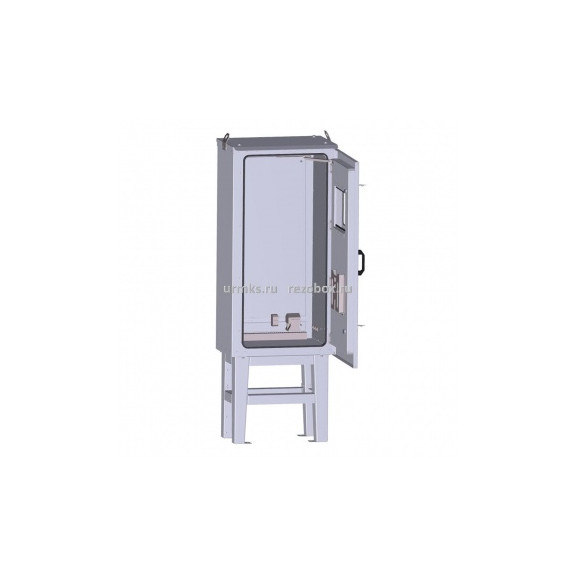

Sfera ShUO-1200x600x400-2-2-2-IP65 cabinet Photo 1

Characteristics

Cabinets made to order to the required dimensions, taking operating climatic conditions into account! Installation of equipment to create and maintain a climate (heating, ventilation, air conditioner).

To determine the internal dimensions:

with thermal insulation based on mineral wool boards, assume a wall thickness of 54 mm and a door thickness of 47 mm;
with thermal insulation based on foamed rubber or foamed polyethylene, assume a wall and door thickness of 25 mm.

Price: 46 900 rubles*

Catalog download

* - Цена, указанная на сайте, актуальна на момент размещения информации. Для получения актуального предложения отправьте заявку.

Description
Equipment

Overall dimensions (height × width × depth), mm	1200×600×400
Body material	Galvanised steel
Thermal insulation material	Mineral wool thermal insulation boards (50 mm thick)
Degree of protection	IP65
Heater type	Non-explosion-proof with thermostat

Body made of galvanised steel. Metal thickness 1-3 mm;
Canopy roof – 1 pcs;
Special eye bolts (for lifting the cabinet with a hoist) – 2 pcs;
Triangular-key locks (+ keys) – 2 pcs;
Dust- and moisture-proof lock caps – 2 pcs;
Thermal insulation material – mineral wool insulation boards (50 mm thick);
Reliable fittings (hinges, locks, U-shaped door gasket, window gasket);
Set of supports 500 mm high of reinforced demountable construction;
Door with a catch in the open position – 1 pcs;
Convenient plastic handle on the cabinet door – 1 pcs;
Document pocket on the cabinet door – 1 pcs;
Earthing wire between the body and the door – 1 pcs;
Inspection window 260×200 mm – 1 pcs;
Mounting panel 1000×400 mm made of galvanised steel;
On the side of the cabinet body there are brass cable glands M 20 UT1,5 IP68 (cable d 10-14 mm) – 3 pcs;
CIRRUS-60 series fan heater (200,300,400 W) installed in the lower part of the rear wall of the cabinet – 1 pcs;
FGT 102 adjustable thermostat – 1 pcs;
Polymer powder coating per the RAL catalogue.
