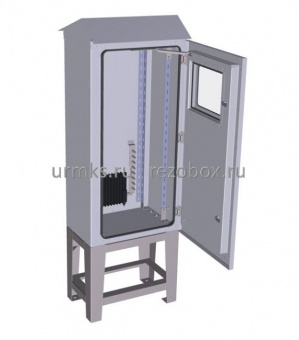

Sfera ShUO-1200x600x400-2-2-1-IP54 cabinet

Name: Sfera ShUO-1200x600x400-2-2-1-IP54 cabinet
Brand: Сфера
SKU: 725
Price: 45700 RUB
Availability: PreOrder

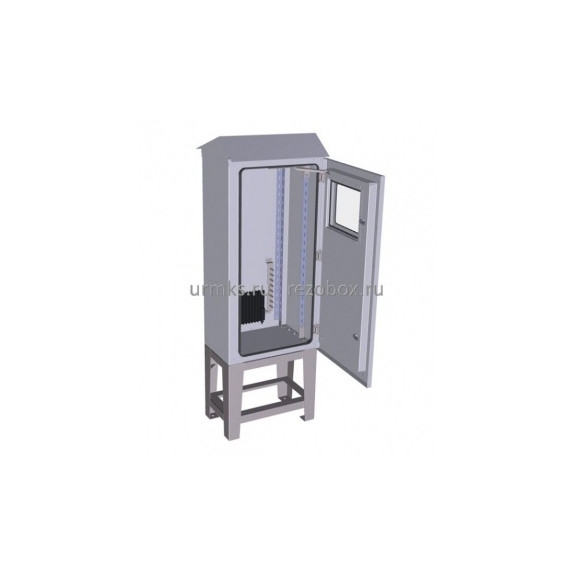

Sfera ShUO-1200x600x400-2-2-1-IP54 cabinet Photo 1

Characteristics

Cabinets made to order to the required dimensions, taking operating climatic conditions into account! Installation of equipment to create and maintain a climate (heating, ventilation, air conditioner).

To determine the internal dimensions:

with thermal insulation based on mineral wool boards, assume a wall thickness of 54 mm and a door thickness of 47 mm;
with thermal insulation based on foamed rubber or foamed polyethylene, assume a wall and door thickness of 25 mm.

Price: 45 700 rubles*

Catalog download

* - Цена, указанная на сайте, актуальна на момент размещения информации. Для получения актуального предложения отправьте заявку.

Description
Equipment

Overall dimensions (height × width × depth), mm	1200×600×400
Type	Insulated heated cabinet (ShUO)
Body material	Galvanised steel
Thermal insulation material	Mineral wool thermal insulation boards (50 mm thick)
Degree of protection	IP54
Heater type	Explosion-proof with thermostat

Body with overall dimensions (H×W×D) 1200*600*400 mm, protection class IP54, front metal thickness 1,5 mm, inner 1,0 mm.
Insulation – mineral wool, 50 mm thick
Grey polymer powder coating – RAL7035 textured finish
Door gasket
Canopy
Window in the door – 1 pcs
Oskar hinges
Triangular-key lock – 2 pcs
Reinforced feet 500 mm – 1 set
Perforated angle – 4 pcs
OSHA-R-2 200 W heater – 1 pcs
RKN-15 U2 IP54 externally threaded fastening element – 4 pcs
Packaging: bubble wrap + corrugated cardboard + crate
