Sfera ShUO-1200x600x300-2-2-2-IP65 cabinet

Name: Sfera ShUO-1200x600x300-2-2-2-IP65 cabinet
Brand: Сфера
SKU: 735
Price: 51900 RUB
Availability: PreOrder

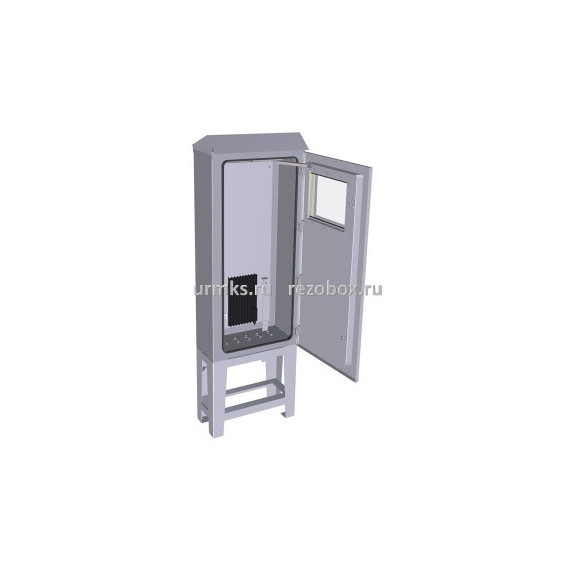

Sfera ShUO-1200x600x300-2-2-2-IP65 cabinet Photo 1

Characteristics

Cabinets made to order to the required dimensions, taking operating climatic conditions into account! Installation of equipment to create and maintain a climate (heating, ventilation, air conditioner).

To determine the internal dimensions:

with thermal insulation based on mineral wool boards, assume a wall thickness of 54 mm and a door thickness of 47 mm;
with thermal insulation based on foamed rubber or foamed polyethylene, assume a wall and door thickness of 25 mm.

Price: 51 900 rubles*

Catalog download

* - Цена, указанная на сайте, актуальна на момент размещения информации. Для получения актуального предложения отправьте заявку.

Description
Equipment

Overall dimensions (height × width × depth), mm	1200×600×300
Type	Insulated heated cabinet (ShUO)
Body material	Galvanised steel
Thermal insulation material	Mineral wool thermal insulation boards (50 mm thick)
Degree of protection	IP65
Heater type	Non-explosion-proof with thermostat

Body with overall dimensions (H×W×D) 1200×600×300 mm, protection class IP54, front metal thickness 1,5 mm, inner 1,0 mm, material: galvanised steel
Triangular canopy
Insulation – mineral wool 50 mm.
Grey polymer powder coating – RAL7035 textured finish
Galvanised mounting panel 1000×400 mm
Feet 500 mm – 1 set
OSHA-R-3- 300 W heater – 1 pcs
D door gasket
Oskar hinges
Oskar lock with protective caps – 2 pcs
Window 300×230 – 1 pcs
Galvanised earthing bus – 1 pcs
Entry coupling 50 mm – 10 pcs
RKN-15 U2 IP55 externally threaded fastening element – 5 pcs
RKN-20 U2 IP54 externally threaded fastening element – 5 pcs
Packaging: bubble wrap + corrugated cardboard + wooden crate
