Sfera ShUO-1200x1300x450-1-2-1-IP54 cabinet

Name: Sfera ShUO-1200x1300x450-1-2-1-IP54 cabinet
Brand: Сфера
SKU: 749
Price: 61200 RUB
Availability: PreOrder

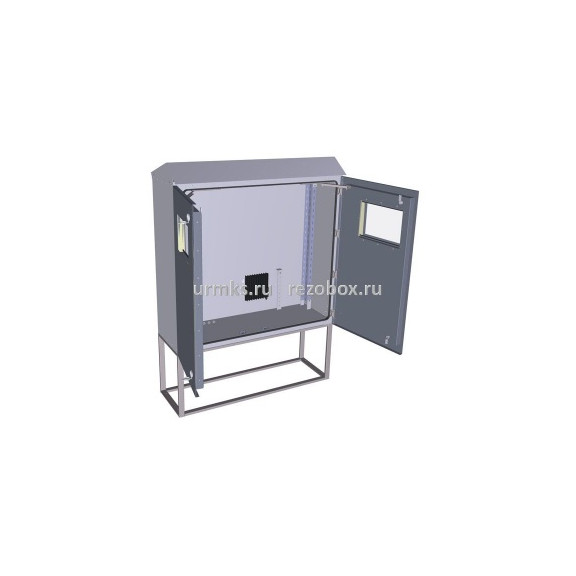

Sfera ShUO-1200x1300x450-1-2-1-IP54 cabinet Photo 1

Characteristics

Cabinets made to order to the required dimensions, taking operating climatic conditions into account! Installation of equipment to create and maintain a climate (heating, ventilation, air conditioner).

To determine the internal dimensions:

with thermal insulation based on mineral wool boards, assume a wall thickness of 54 mm and a door thickness of 47 mm;
with thermal insulation based on foamed rubber or foamed polyethylene, assume a wall and door thickness of 25 mm.

Price: 61 200 rubles*

Catalog download

* - Цена, указанная на сайте, актуальна на момент размещения информации. Для получения актуального предложения отправьте заявку.

Description
Equipment

Overall dimensions (height × width × depth), mm	1200×1300×450
Type	Insulated heated cabinet (ShUO)
Body material	Black steel
Thermal insulation material	Mineral wool thermal insulation boards (50 mm thick)
Degree of protection	IP54
Heater type	Explosion-proof with thermostat

Body with overall dimensions (H×W×D) 1200*1300*450 mm, protection class IP54, front metal thickness 1,5 mm, inner 1,0 mm, material: black steel sheet
Canopy
Insulation – mineral wool 50 mm.
Grey polymer powder coating – RAL7035 textured finish
Pedestal 500 mm high
Perforated angle – 4 pcs
OSHA-R-2 200 W heater – 1 pcs
RKN-15 cable gland – 6 pcs
D door gasket
Oskar hinges
Lock with protective caps – 4 pcs.
Window – 2 pcs
Box mounting bracket – 1 pcs
Earthing bus – 1 pcs
Packaging: bubble wrap + corrugated cardboard
