Sfera ShU 900×900×700 IP54 cabinet

Name: Sfera ShU 900×900×700 IP54 cabinet
Brand: Сфера
SKU: 1737

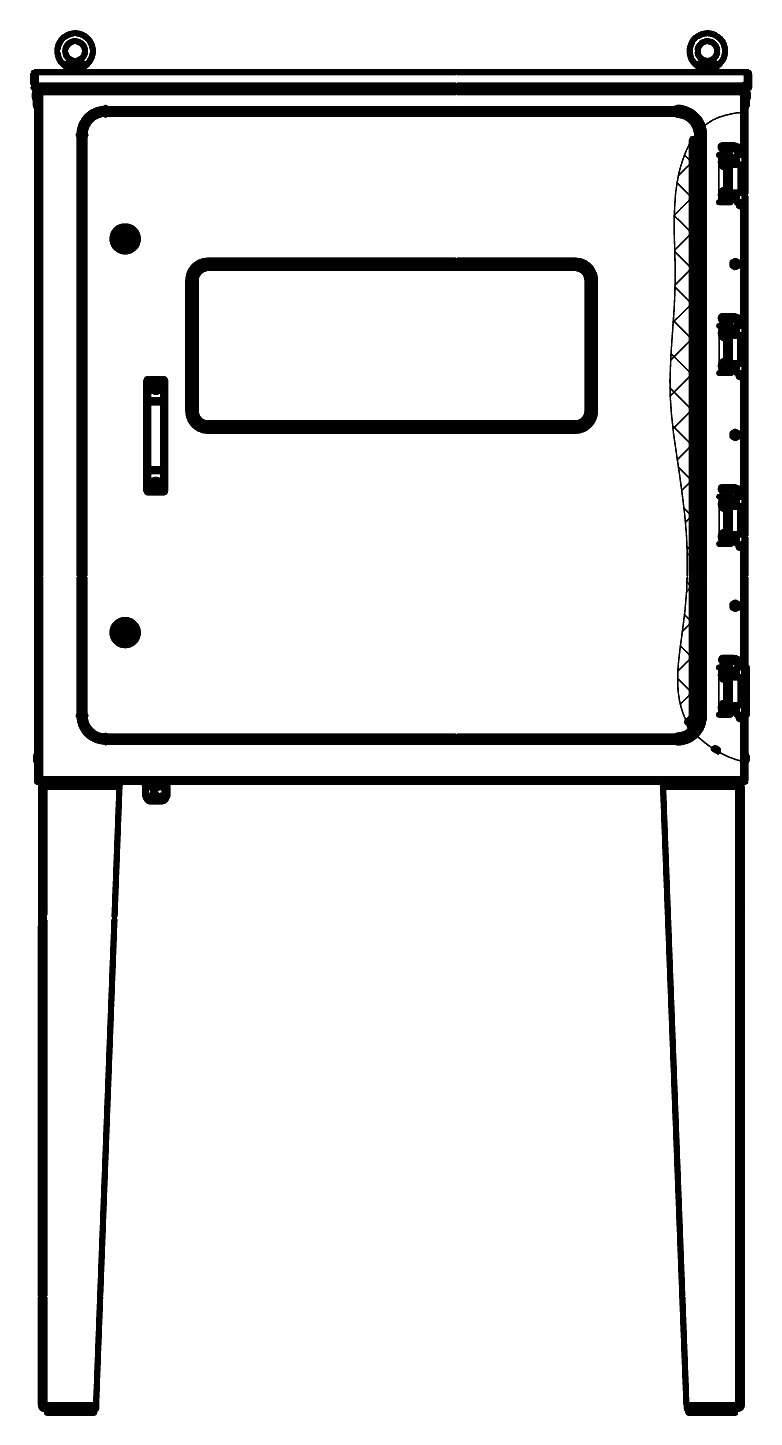

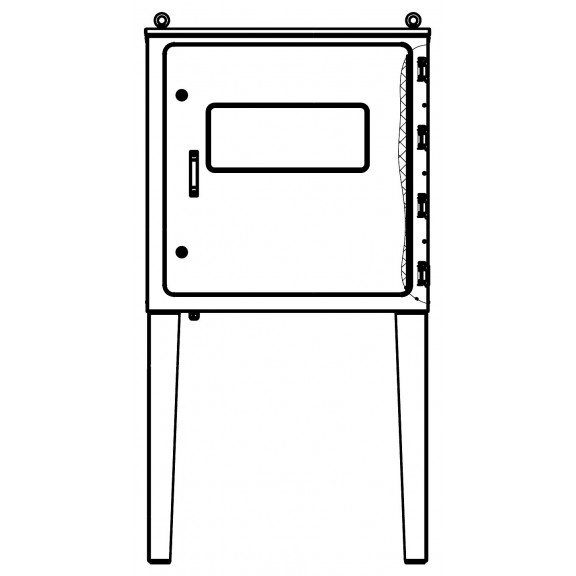

Sfera ShU 900×900×700 IP54 cabinet Photo 1

Characteristics

The compact outdoor body of the Sfera ShU series of 900×900×700 mm is designed to house distribution or switching equipment at facilities without a separate technical room. Mineral wool insulation 50 mm and the IP54 protection rating allow it to be installed on an open site or next to a building facade. This format is in demand where medium-sized equipment needs to be housed while keeping compactness and ease of maintenance.

Catalog download

Description

Part number (design documentation code)	ShU152
Overall dimensions (height × width × depth), mm	900×900×700
Type	Insulated outdoor cabinet (ShU)
Body material	Galvanised steel
Thermal insulation material	Mineral wool (50 mm thick)
Degree of protection	IP54
Mounting	Wall-mounted or on supports – to order

Equipment

Galvanised steel body with polymer powder coating
Thermal insulation – mineral wool 50 mm
Door with a gasket around the perimeter and a lock
Mounting panel / DIN rail
Cable glands
Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The external dimensions of 900×900×700 mm allow a mounting panel or DIN rail with several rows of modular devices, circuit breakers, RCDs, terminal blocks, metering devices and small automation controllers to be placed inside. This volume is enough for a medium-sized panel with room for cable entries and wiring, while the cabinet remains convenient for wall or support mounting without the need for a separate room.

The cable glands provide organised entry of cables from outside, and the gasketed door with a lock protects the equipment from dust and moisture in outdoor operation. If necessary, the cabinet configuration is supplemented with heating, ventilation, a thermostat or a canopy – these options are ordered separately and are not part of the basic configuration.

Where it is used:

distribution panels of street lighting on a section of a street or territory;
metering and switching points at municipal utility facilities and in courtyard networks;
control panels for low-power pumping and ventilation units;
housing automation and controllers on process sites;
communication and low-current equipment cabinets on posts and facades;
compact power supply panels for temporary and auxiliary facilities.
