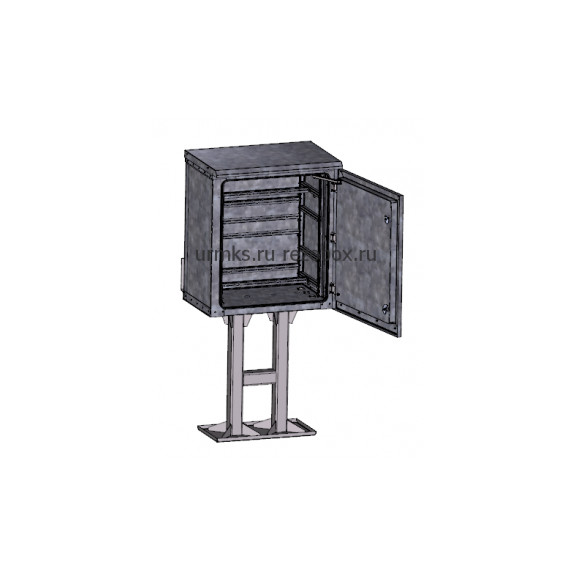

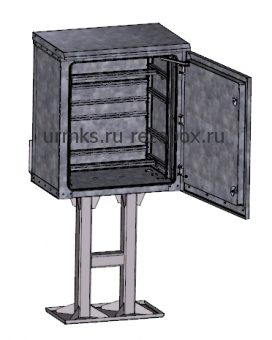

Sfera ShU-900x800x500-2-2-IP65 cabinet

1. Body made of galvanised steel. Metal thickness 1,5-2 mm;

2. Protective canopy

3. Triangular-key locks (+ keys) – 2 pcs;

4. Thermal insulation material – mineral wool insulation boards (50 mm thick);

5. Reliable fittings (hinges, locks, U-shaped door gasket);

6. Reinforced pipe stand made of 80×80×3 profile pipe, 800 mm high;

7. Door with a catch in the open position – 1 pcs;

8. Convenient plastic handle on the cabinet door – 1 pcs;

9. Earthing wire between the body and the door – 1 pcs;

10. Coupling for M20×1,5 cable gland – 7 pcs

11. Coupling for M25×1,5 cable gland – 3 pcs

12. Vertical posts made of galvanised steel – 4 pcs

13. Side crossbars made of galvanised steel – 7 pcs

14. Horizontal crossbars made of galvanised steel – 6 pcs;

15. Polymer powder coating per the RAL catalogue;
