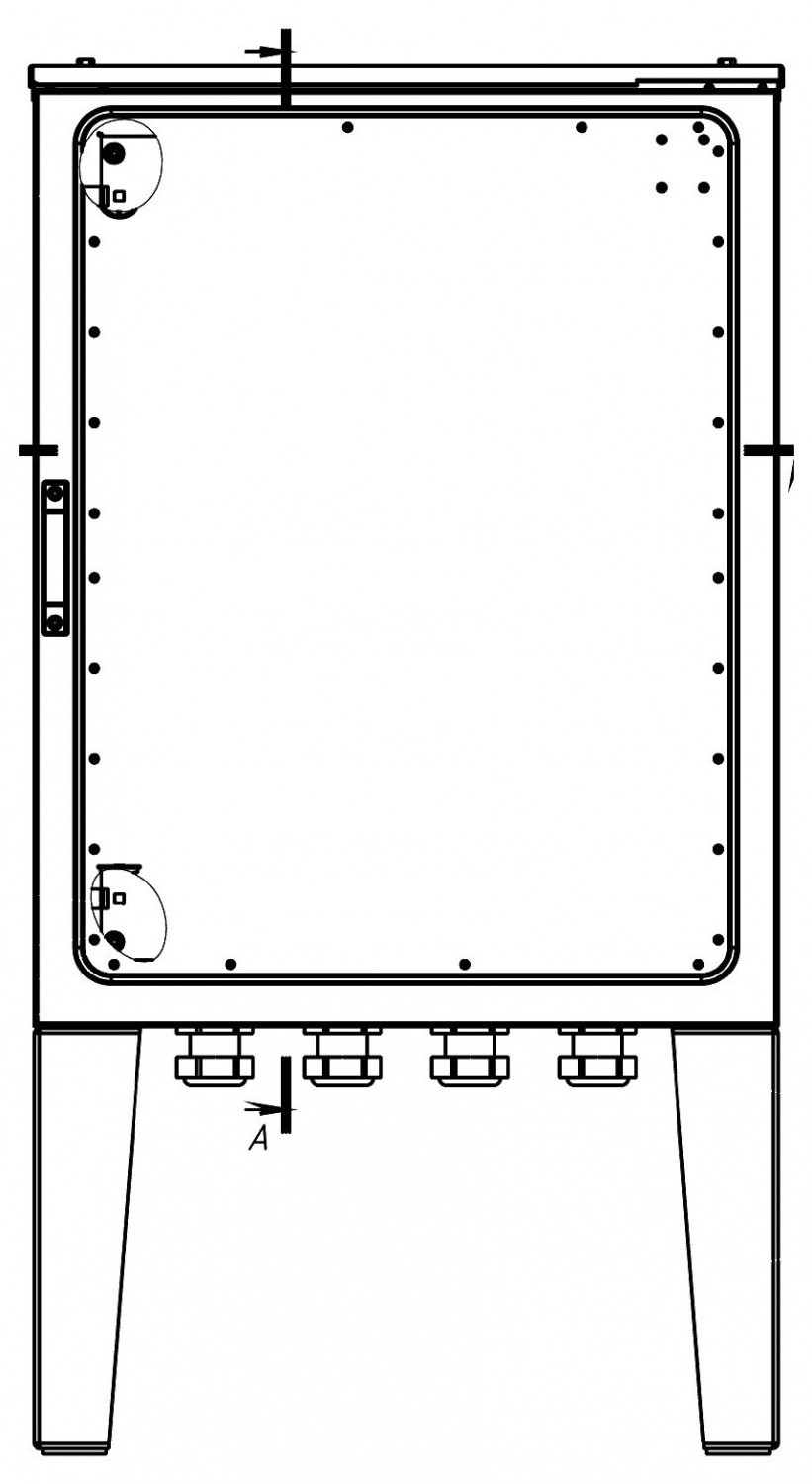

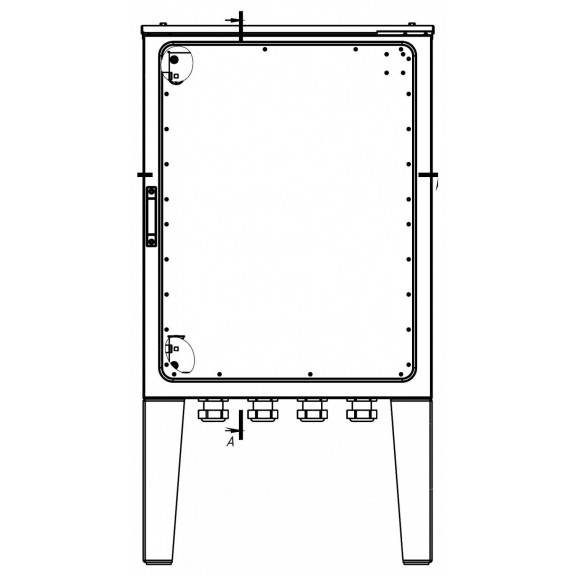

Sfera ShU 900×700×300 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The dimensions of 900×700×300 mm allow a mounting panel or DIN rail with metering devices, circuit breakers, relays and terminal blocks on 2–3 rows of modular equipment to be placed. The depth of 300 mm suits devices with a small protrusion – meters, controllers, small automation panels – and cable entry and exit are organised through glands in the body.

Insulation and the IP54 protection class make it possible to put the cabinet outdoors or in an unheated room without additional shelter. The wall or support mounting makes this size a convenient solution where a separate metering or control node of compact volume is needed rather than a full-size panel cabinet.

Where it is used:

• electricity metering points at the service entrance of a building or structure;
• lighting control panels in local areas;
• switching and protection posts for small pumping and ventilation units;
• automation cabinets on power line poles and distribution points;
• housing controllers and telemechanics devices at industrial sites;
• main distribution boards for country and garden plots.
