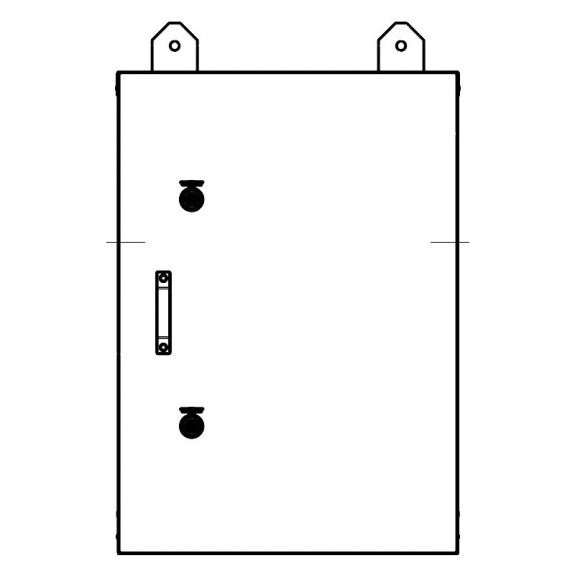

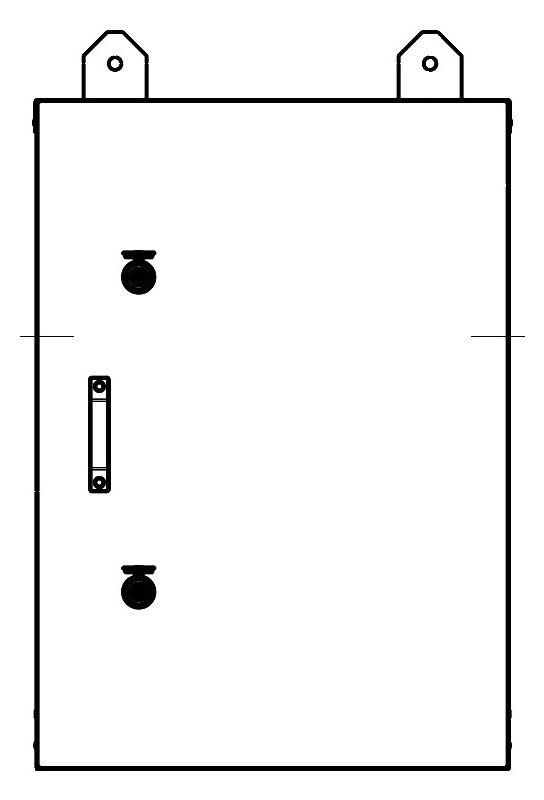

Sfera ShU 850×600×400 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The dimensions of 850×600×400 mm allow several rows of modular devices – circuit breakers, RCDs, terminal blocks, as well as a compact controller or a small power supply – to be placed on a mounting panel or DIN rails. The depth of 400 mm makes it possible to install equipment on two levels in depth, for example a DIN rail and separate metering or communication devices, without creating crowding during maintenance.

The format suits installation on a building wall, post, fence or steel structure in places where there is no permanent room for a switchroom. The cable glands provide organised cable entry, and the door with a gasket and lock protects against unauthorised access and precipitation. Thanks to the low weight and size, the cabinet is easy to install without lifting equipment.

Where it is used:

• electricity metering point on a post or building facade;
• automation cabinet for outdoor lighting of streets and courtyards;
• housing video surveillance and communication system equipment outdoors;
• control panel for a pumping station or irrigation system on an open site;
• remote telemechanics node at utility and power grid facilities;
• I&C cabinet for monitoring a local process node in production.
