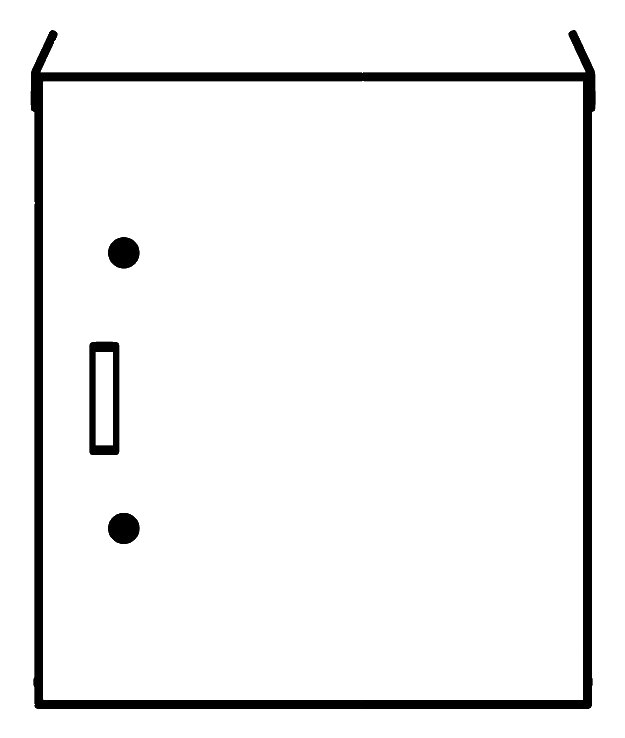

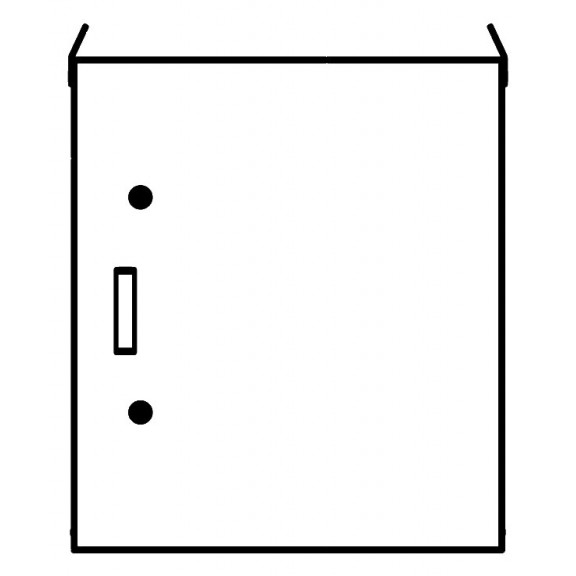

Sfera ShU 800×700×400 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

With a width of 700 mm and a height of 800 mm, the cabinet holds a mounting panel or DIN rail with 3–4 rows of modular equipment – circuit breakers, RCDs, terminal blocks, metering devices and small controllers. The depth of 400 mm allows compact panel devices to be placed in one row in depth while keeping space for routing cables and cable glands.

This format is convenient where a medium-sized outdoor cabinet with enough spare room to expand the set is needed, but without the dimensions of a full-size main distribution board. The wall or support mounting, insulation and gasketed door make the cabinet suitable for long-term open-air operation, and the compact dimensions make it easier to choose an installation place on site.

Where it is used:

• electricity metering points at a building service entrance or on a post;
• distribution panels for outdoor and street lighting;
• housing automation and I&C devices on utility network sites;
• control panels for pumping stations and local water supply systems;
• communication and telemechanics cabinets for linear facilities;
• distribution points on the territories of industrial and municipal facilities.
