Sfera ShU 800×600×500 IP54 cabinet

Name: Sfera ShU 800×600×500 IP54 cabinet
Brand: Сфера
SKU: 1780

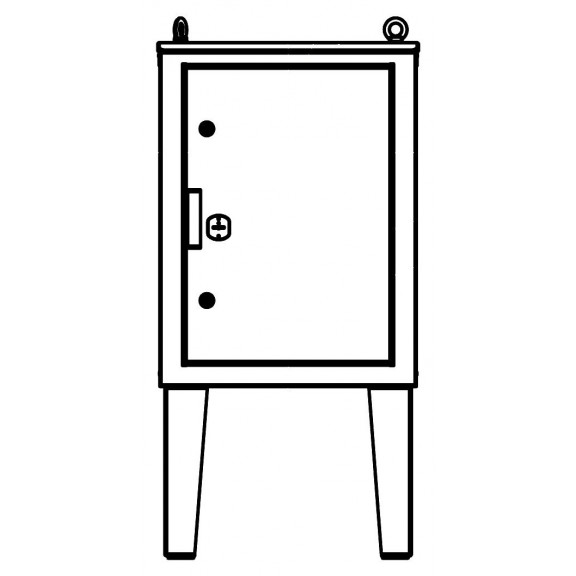

Sfera ShU 800×600×500 IP54 cabinet Photo 1

Characteristics

The insulated outdoor body with dimensions of 800×600×500 mm is designed to house equipment of medium mounting density – automation, metering devices, switching units. This size is chosen when one compact cabinet is not enough and a full-size body is excessive: the depth of 500 mm allows DIN rails to be installed in several rows and cables to be connected without bending. The IP54 protection rating and mineral wool 50 mm allow the body to be operated outdoors all year round.

Catalog download

Description

Part number (design documentation code)	ShU13
Overall dimensions (height × width × depth), mm	800×600×500
Type	Insulated outdoor cabinet (ShU)
Body material	Galvanised steel
Thermal insulation material	Mineral wool (50 mm thick)
Degree of protection	IP54
Mounting	Wall-mounted

Equipment

Galvanised steel body with polymer powder coating
Thermal insulation – mineral wool 50 mm
Door with a gasket around the perimeter and a lock
Mounting panel / DIN rail
Cable glands
Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The 800×600×500 mm body holds several rows of DIN rails with circuit breakers, contactors, relays and terminal blocks, and the depth of 500 mm leaves room for neat routing of cable runs and connecting glands. This volume suits control and metering panels of medium composition, where not one or two devices but a full set of switching and protection equipment must be housed.

The wall mounting and the insulated outdoor version allow the cabinet to be installed on building walls, posts and steel structures without additional shelter. The ShU13 format is in demand where equipment works year-round in the open air, and the gasketed door and IP54 protection limit the entry of dust and moisture into the body.

Where it is used:

electricity metering panels at service entrances of buildings and structures;
automation nodes of outdoor lighting systems;
control cabinets for pumping and ventilation equipment on open sites;
switching nodes of video surveillance and communication systems outdoors;
housing I&C devices on pipelines and process lines;
distribution points of low-voltage networks at industrial and infrastructure facilities.
