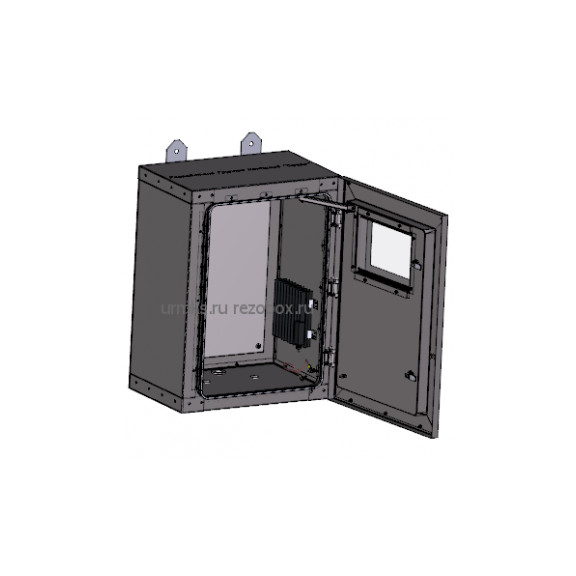

Sfera ShU-800x600x400-1-2-IP65 cabinet
Cabinets made to order to the required dimensions, taking operating climatic conditions into account! Installation of equipment to create and maintain a climate (heating, ventilation, air conditioner).
To determine the internal dimensions:
- with thermal insulation based on mineral wool boards, assume a wall thickness of 54 mm and a door thickness of 47 mm;
- with thermal insulation based on foamed rubber or foamed polyethylene, assume a wall and door thickness of 25 mm.
- Description
- Equipment
| Overall dimensions (height × width × depth), mm | 800×600×400 |
| Type | Insulated cabinet (ShU) |
| Body material | General-purpose steel |
| Thermal insulation material | Mineral wool thermal insulation boards (50 mm thick) |
| Degree of protection | IP65 |
Body made of general-purpose steel. Metal thickness 1-3 mm;
2. Triangular-key locks (+ keys) – 2 pcs;
3. Thermal insulation material – mineral wool insulation boards (50 mm thick);
4. Reliable fittings (hinges, locks, U-shaped door gasket);
5. Wall fixing kit;
6. Door with a catch in the open position – 1 pcs;
7. Convenient plastic handle on the cabinet door – 1 pcs;
8. Earthing wire between the body and the door – 1 pcs;
9. Inspection window 160×260×32 mm – 1 pcs;
10. Mounting panel made of general-purpose steel. Metal thickness 1,5 mm, overall dimensions 600×400 mm – 1 pcs;
11. Entry coupling for M25 cable gland – 3 pcs
12. OSHA-R-2-200 W explosion-proof heater with built-in thermostat
13. Polymer powder coating per the RAL catalogue.
