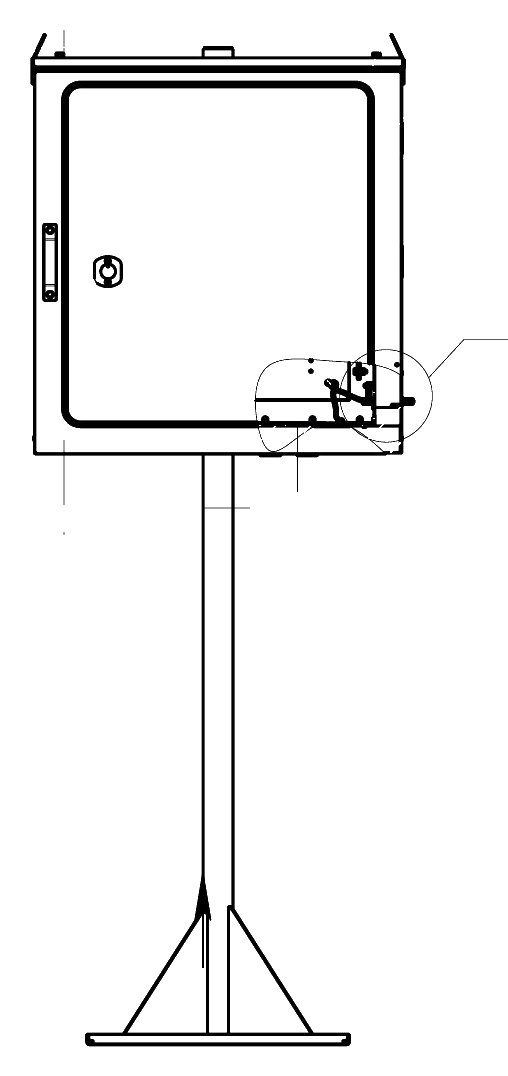

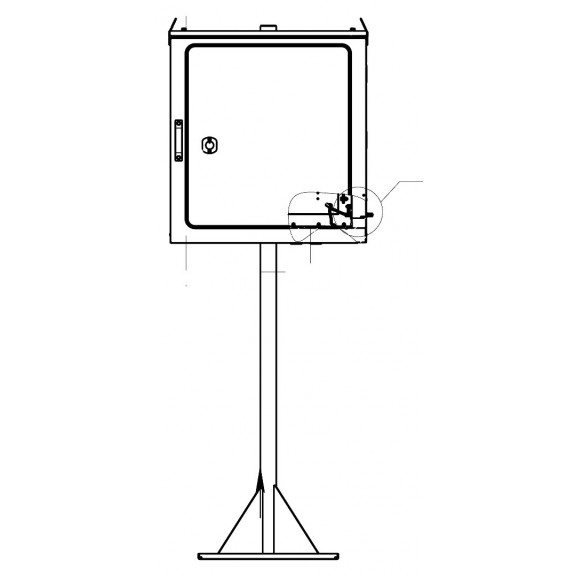

Sfera ShU 750×700×350 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The dimensions of 750×700×350 mm allow several rows of circuit breakers, electricity metering devices, terminal blocks, relays and small instrumentation to be placed in the cabinet on a mounting panel or DIN rail. This volume is enough for a metering node, a control automation group or a distribution panel at a facility with a moderate number of outgoing lines.

Mineral wool insulation 50 mm and a gasket around the door perimeter provide additional protection of the equipment from freezing of the body and condensation formation in open-air operation. The wall mounting method simplifies installation on a building wall, post or steel structure without a foundation, and the IP54 protection rating permits operation under exposure to dust and water splashes.

Where it is used:

• electricity metering points at service entrances of buildings and structures;
• lighting control panels on the territories of enterprises and infrastructure facilities;
• automation cabinets for ventilation systems and pumping equipment for outdoor installation;
• distribution nodes at construction sites and temporary facilities;
• communication and telemetry equipment on posts and facades;
• control panels for shut-off valves and I&C on pipelines and production sites.
