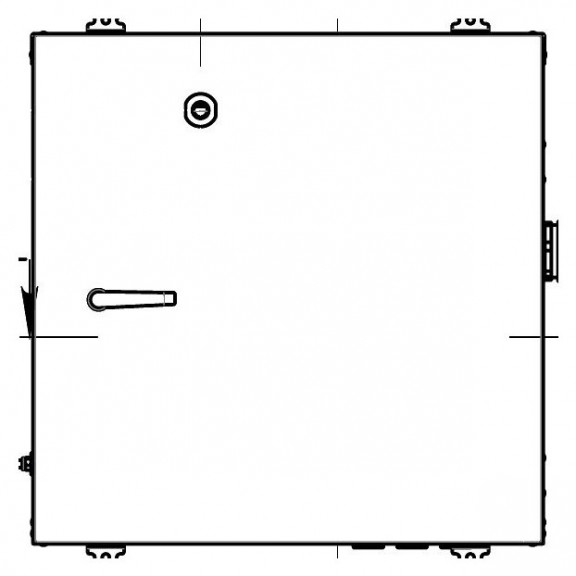

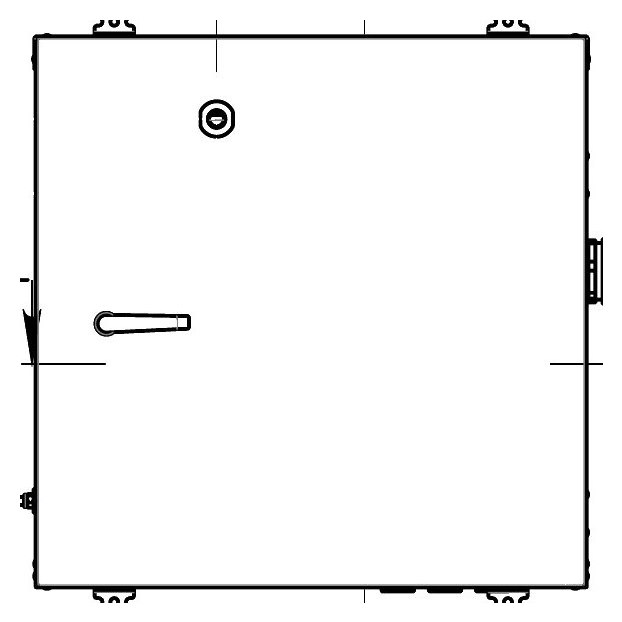

Sfera ShU 700×700×400 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The 700×700×400 mm cabinet makes it possible to house a mounting panel or DIN rail with small and medium-volume metering devices, circuit breakers, contactors and terminal blocks – as a rule, one or two rows of DIN rails across the width of the body plus room for a metering panel or compact starter. This volume is enough for a service-entrance node, a group of automation for a small facility or the equipment of one process post without a reserve for expansion.

The cabinet is placed on open sites, next to buildings and structures, on posts and stands, where compactness and simple wall mounting without a foundation matter. The cable glands provide cable entry while preserving IP54, and the gasketed door with a lock protects from dust and moisture. If necessary, heating, ventilation, a thermostat, a canopy or an inspection window are installed to order.

Where it is used:

• electricity metering points at the service entrance of small buildings;
• automation panels of outdoor lighting systems;
• communication and telemechanics equipment on posts and masts;
• control posts for pumping and ventilation units;
• temporary power supply connection panels on sites;
• housing instrumentation on utility networks.
