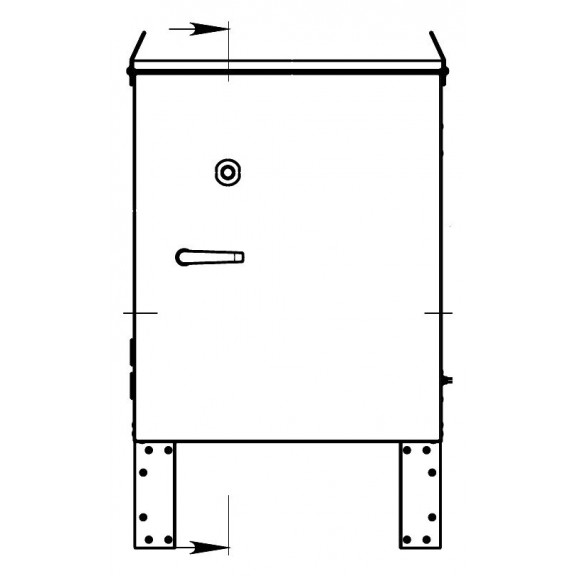

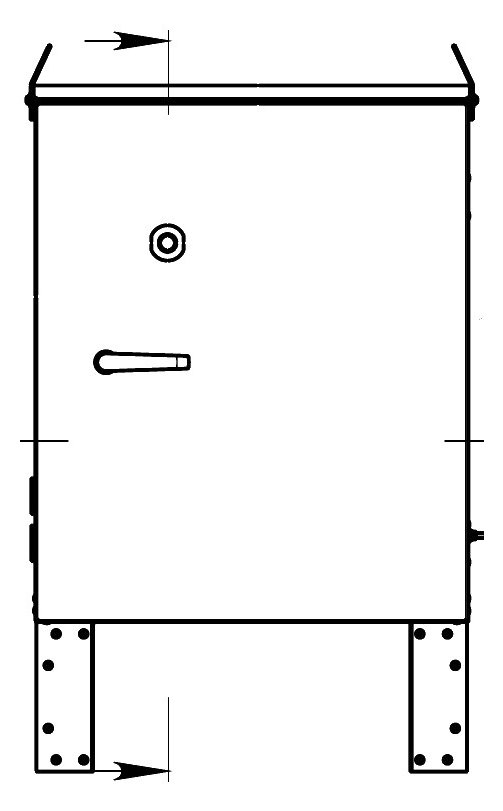

Sfera ShU 680×550×430 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The 680×550×430 mm cabinet allows a mounting panel or DIN rail with one or two rows of modular devices – circuit breakers, RCDs, terminal blocks, as well as a small metering device or controller – to be placed. This volume is enough for a compact switching or metering node without spare room for expansion, so the cabinet is used where the equipment composition is determined in advance and no significant increase is expected.

Cable glands, a gasketed door with a lock and 50 mm insulation make the cabinet suitable for open installation outdoors – on a building wall, post or structure. To order, the body is equipped with heating, ventilation, a thermostat, a canopy or an inspection window, so it can be adapted to specific operating conditions. The small dimensions and wall or support mounting make the cabinet a convenient solution where there is no room for a large distribution cabinet.

Where it is used:

• electricity metering point at the service entrance of a building or structure;
• switching point for lighting a territory, car park or courtyard;
• housing a controller and automation of video surveillance or communication systems;
• distribution node for connecting temporary or auxiliary consumers at a site;
• automation cabinet for a pumping station or a low-power water supply node;
• protective housing for security alarm and access control system equipment at a facility.
