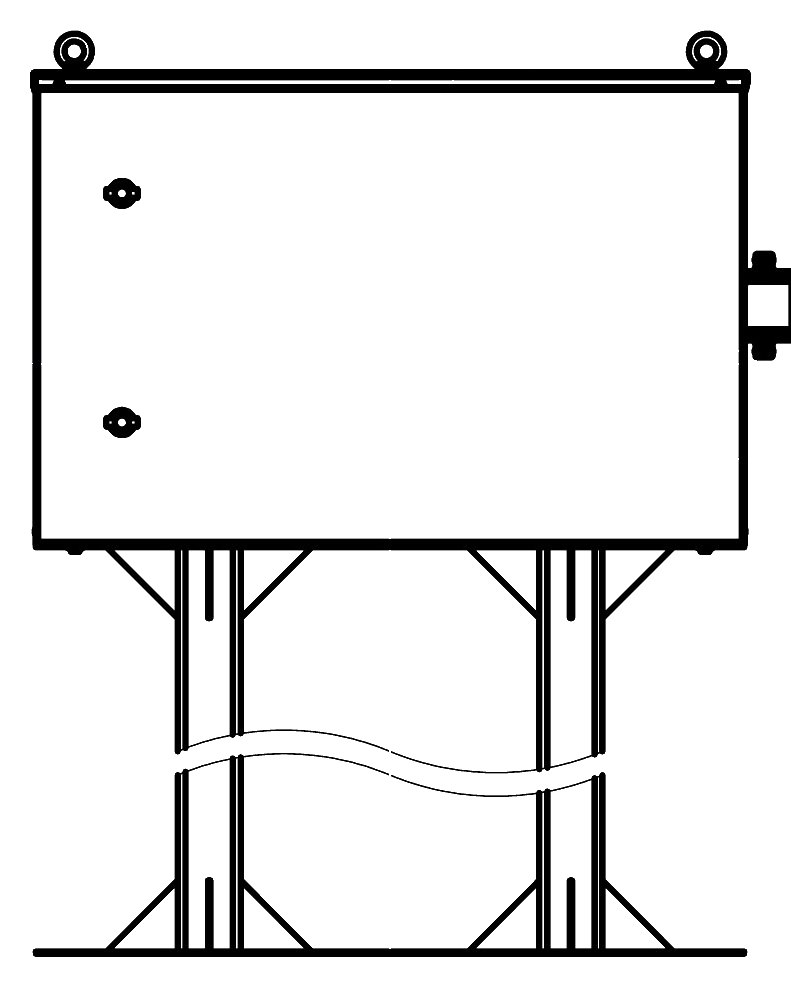

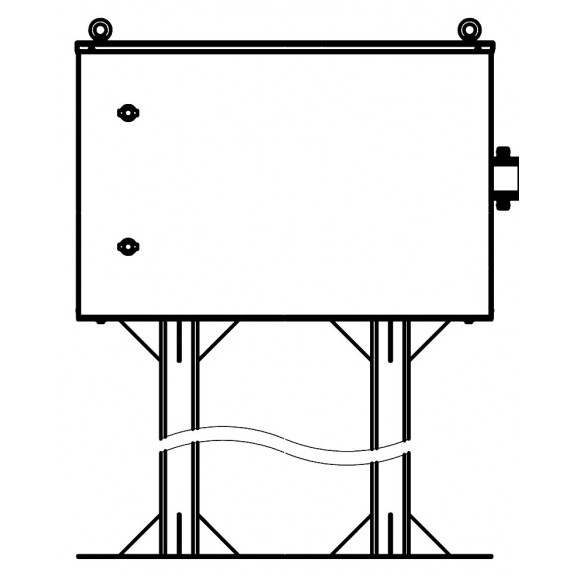

Sfera ShU 600×900×600 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The external dimensions of 600×900×600 mm allow several rows of modular devices – circuit breakers, RCDs, terminal blocks, as well as a compact metering device, controller or power supply – to be placed on the mounting panel or DIN rail. The width of 900 mm makes it possible to arrange the equipment in one or two mounting rows with room for routing cables and installing glands, and the depth of 600 mm to place oversized elements, such as a small transformer or a panel with remote terminals.

Mineral wool 50 mm and a sealed door with a gasket make the cabinet suitable for outdoor installation on open sites, posts and facades, where protection from precipitation and dust is important without erecting a separate building or box. The compact wall-mounted format is convenient where there is no switchroom and installing a large cabinet is not practical.

Where it is used:

• electricity metering point on a post or building facade;
• distribution point of outdoor lighting of streets and courtyards;
• automation panel for pumping stations and small utility facilities;
• switching and communication cabinet for video surveillance and low-current networks;
• control node for a small ventilation or heating installation;
• compact distribution cabinet at an industrial or construction site.
