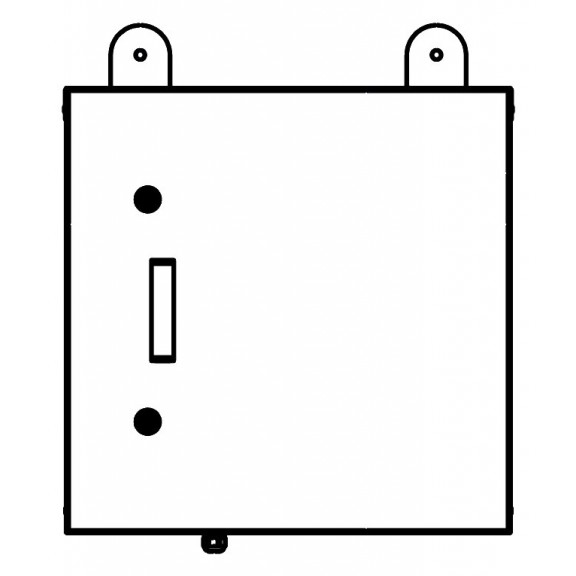

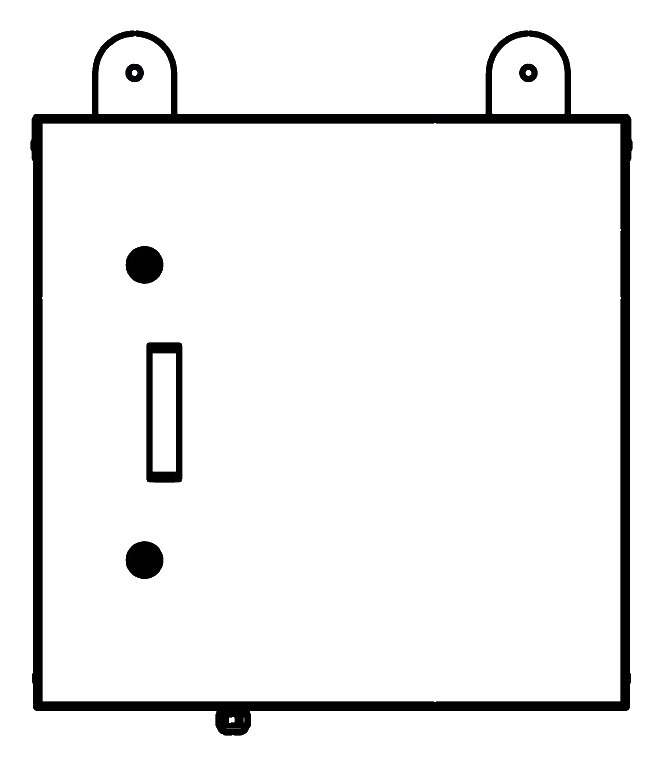

Sfera ShU 600×600×400 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The 600×600×400 mm cabinet is designed to take one mounting panel or DIN rails in one or two rows, which allows a compact group of circuit breakers, an electricity meter, a relay or a small controller with terminal blocks to be placed. This space is enough for a basic set of switching and measuring equipment with no spare places for expansion – the format is aimed precisely at local, point metering and control nodes.

Thanks to the small dimensions and weight, the cabinet is easy to mount on a wall, post or fence, and insulation and the IP54 protection rating allow it to be used on open sites without additional shelter. The compact format is in demand where a single metering or automation node must be installed without allocating a separate room or a large panel.

Where it is used:

• commercial electricity metering nodes at service entrances of private and small commercial facilities;
• lighting control panels on sections of the street and road network;
• automation cabinets for individual pump units and small water supply nodes;
• switching and protection points on power line poles and transformer substations;
• terminal cabinets of telemechanics and dispatching systems at distributed facilities;
• control panels for small process equipment at production sites.
