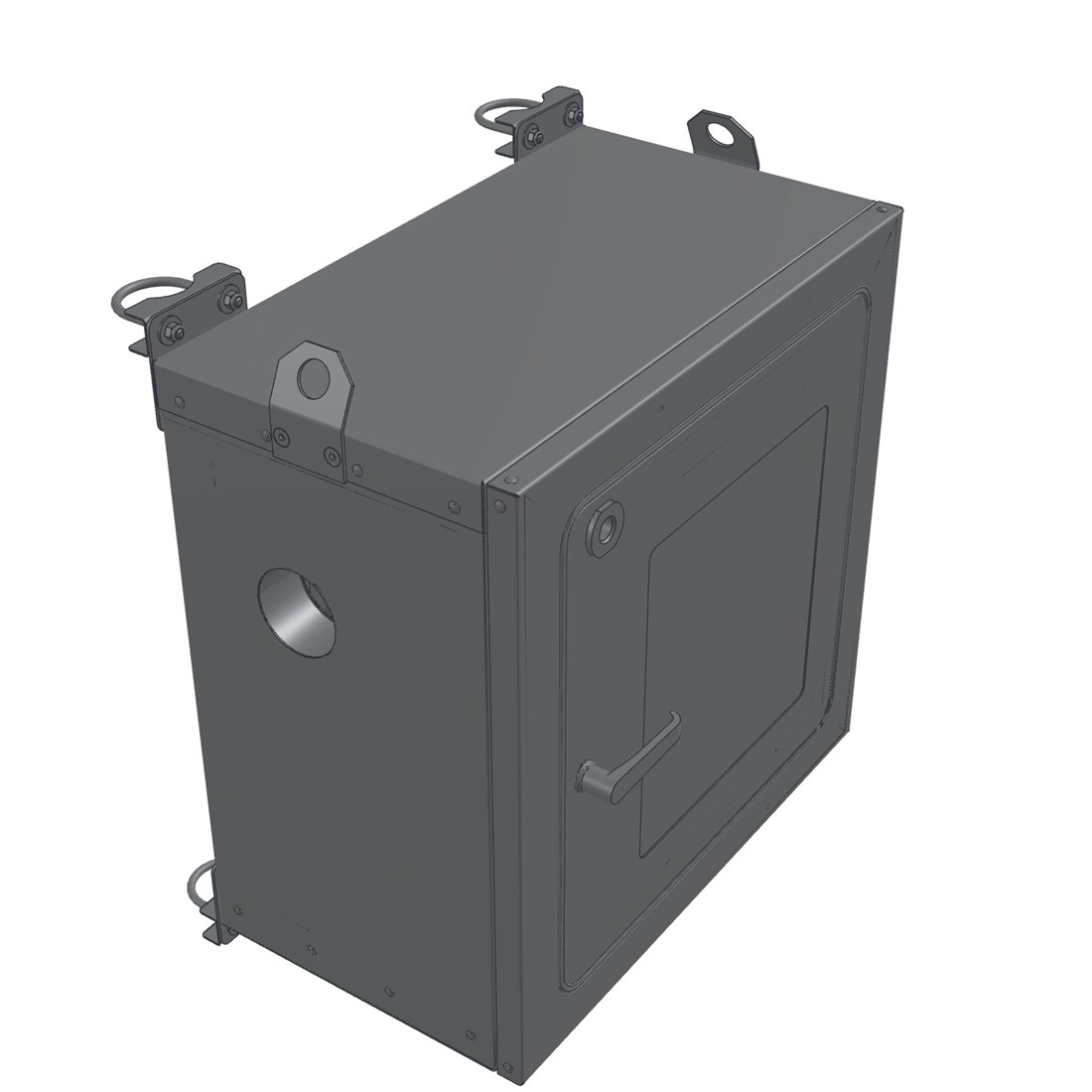

Sfera ShU 600×600×350 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The 600×600×350 mm dimensions allow a set of circuit breakers, terminal groups, small controllers, metering devices or communication nodes to be placed on a mounting panel or DIN rail. This volume is convenient for a single functional node – a service entrance panel, a control station or a switching point – without having to allocate a separate room for it.

The insulated body and sealed cable glands allow the cabinet to be installed in the open, on a facade, post or enclosing structure, and the wall mounting speeds up installation at sites with limited space at ground level. The compact format makes the cabinet a convenient solution where a protected place for equipment is needed but a large body is not justified.

Where it is used:

• electricity metering points on posts and building facades;
• lighting control panels in adjacent areas;
• switching posts for communication and telemechanics cable lines;
• housing instrumentation and automation on utility networks;
• main distribution boards for small facilities and pavilions;
• protecting video surveillance and alarm system equipment on open sites.
