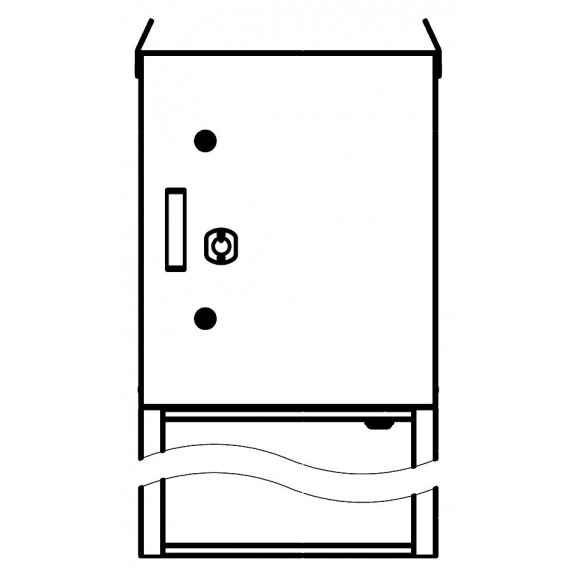

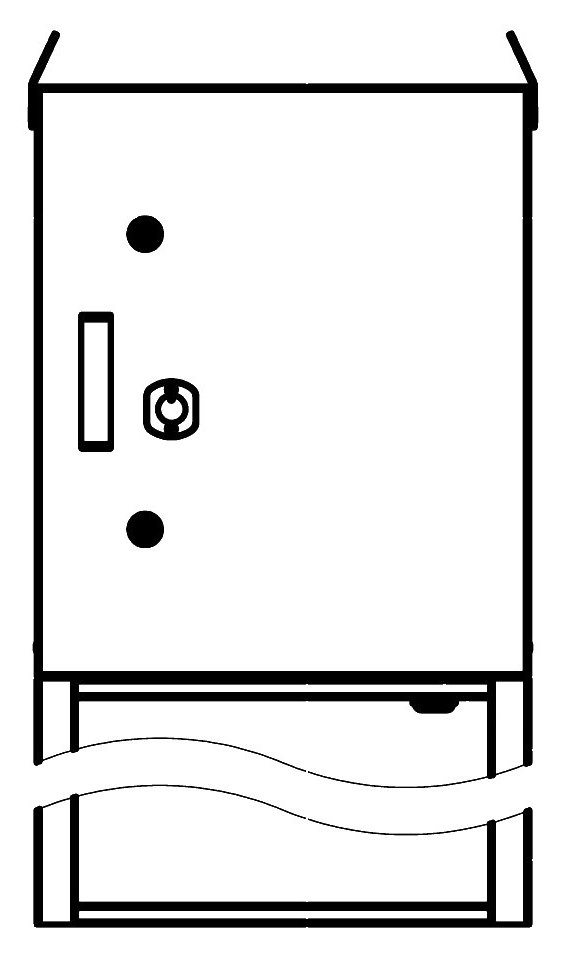

Sfera ShU 600×500×300 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The dimensions of 600×500×300 mm and a depth of 300 mm allow a mounting panel or DIN rail with several modular breakers, terminal blocks, a small controller or a low-power supply to be placed inside. This volume is enough for a compact metering node, a low-power distribution panel or a group of instruments serving one section or facility.

The galvanised body with polymer powder coating and thermal insulation keeps the equipment working when installed outdoors, and the cable glands let cables enter without compromising the sealing of the body. The wall mounting and low weight of the structure simplify installation on a building wall, lighting pole or steel post, making the cabinet a convenient solution where point installation without a foundation is needed.

Where it is used:

• electricity metering points at the service entrance of a building or structure;
• distribution points of low-voltage outdoor lighting networks;
• housing controllers and automation modules on poles and facades;
• I&C panels for local monitoring of process parameters;
• low-power main distribution boards at municipal utility facilities;
• protecting low-current and switching equipment on open sites.
