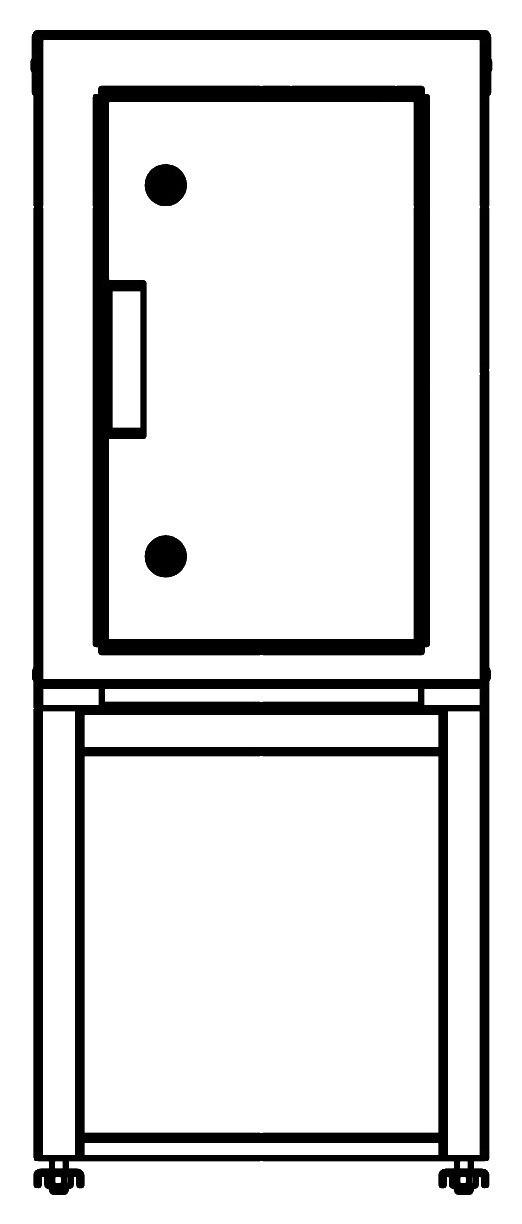

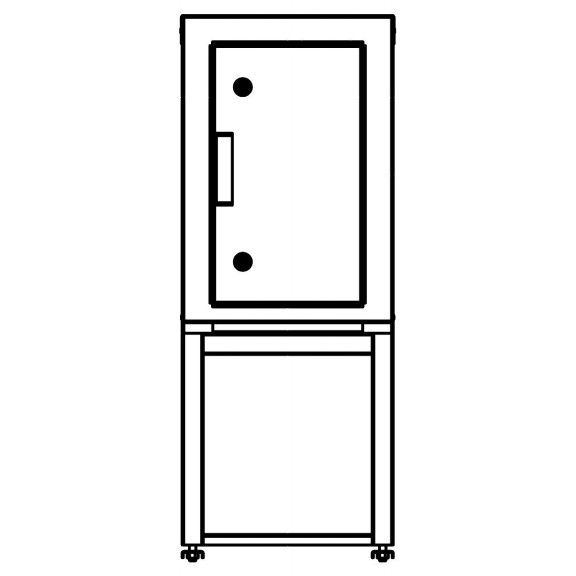

Sfera ShU 600×400×300 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The dimensions of 600×400×300 mm allow a mounting panel or DIN rail with circuit breakers, terminal blocks, a small power supply, a controller or a communication unit to be placed inside the cabinet. This volume is enough for a metering node, a distribution panel for several groups or the switching equipment of one facility, but not for large power assemblies with transformers and powerful contactors.

A galvanised steel body with polymer powder coating and mineral wool insulation is intended for outdoor installation on building facades, posts, poles, fences and light steel structures. The door with a gasket around the perimeter and the cable glands protect the contents from dust and moisture with wall mounting without a foundation or pedestal.

Where it is used:

• electricity metering nodes at building service entrances and on outdoor lighting poles;
• distribution panels of street lighting at low-power facilities;
• automation and communication cabinets for video surveillance systems and telecommunication equipment;
• housing controllers and terminal assemblies at utility and water supply facilities;
• switching nodes at petrol stations, car parks and courtyard territories;
• protective housings for automation devices at industrial and warehouse sites.
