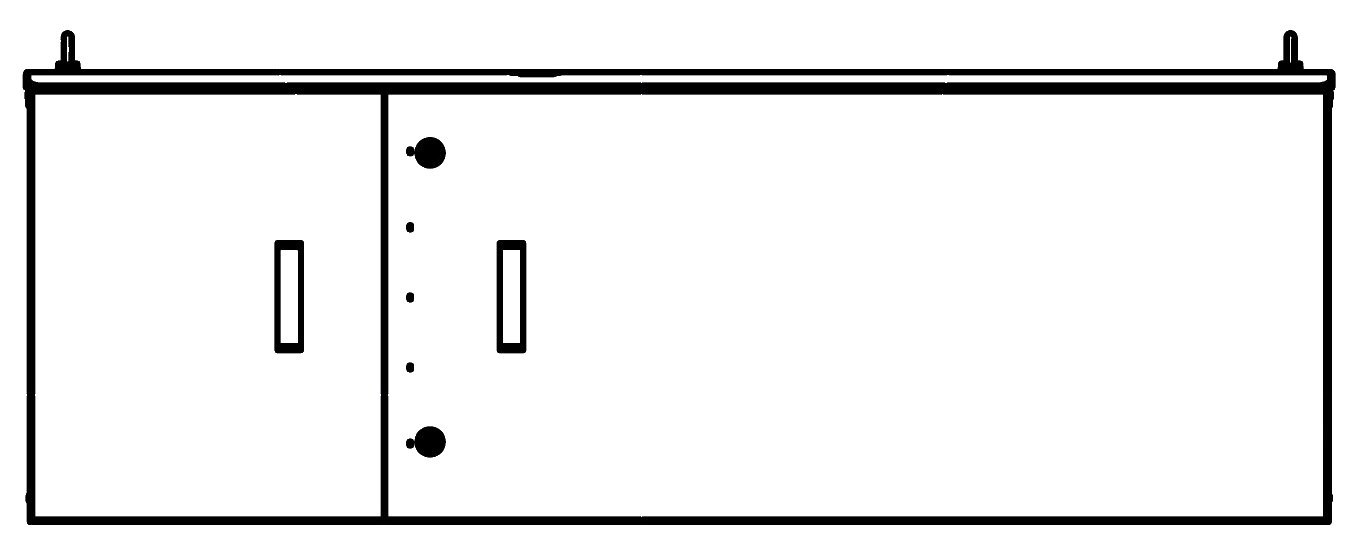

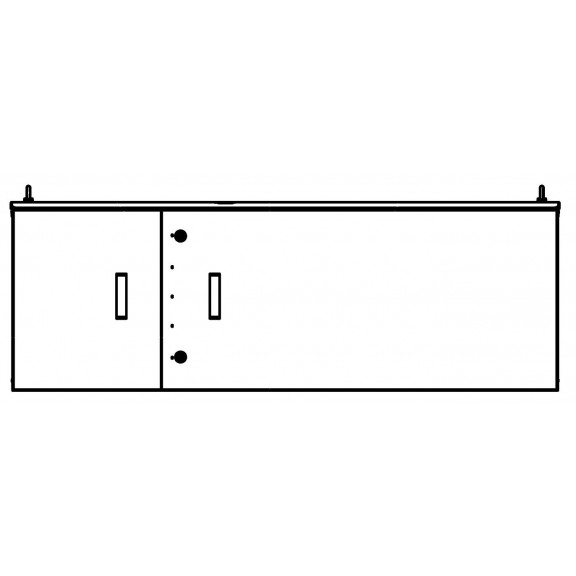

Sfera ShU 570×1650×600 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The wide 1650 mm body at a height of 570 mm allows several modular panels or DIN rails to be placed in a row, and the depth of 600 mm allows metering devices, automation and switching equipment to be installed on one or two mounting levels. This layout is convenient where the equipment needs to be arranged horizontally: for example, main distribution groups, metering panels for several lines or nodes with boxes for cable glands.

The wall-mounted cabinet format with a flat, low body does not require a high fixing point and fits well into the limited space of a facade, post or process overpass. The basic configuration is a door with a gasket and lock, a mounting panel or DIN rail, and cable glands; heating, ventilation, a thermostat, a canopy and an inspection window are added to order.

Where it is used:

• electricity metering points on outdoor lighting poles;
• distribution points for a group of facade or architectural luminaires;
• housing switching automation at packaged substations and transformer substations;
• control panels for pumping and ventilation equipment on open sites;
• housing controllers and modems of telemechanics systems at communication facilities;
• compact service-entrance cabinets for linear road and roadside infrastructure facilities.
