Sfera ShU-500x500x300-1-2-IP65/window thermal cabinet

Name: Sfera ShU-500x500x300-1-2-IP65/window thermal cabinet
Brand: Сфера
SKU: 1707
Price: 29500 RUB
Availability: PreOrder

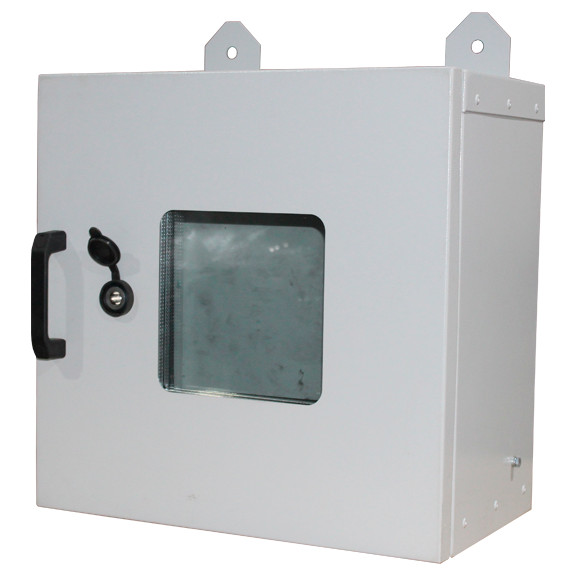

Sfera ShU-500x500x300-1-2-IP65/window thermal cabinet Photo 1

Characteristics

Metal outdoor insulated cabinets are designed to house I&C instruments, network devices and other equipment operating at positive temperatures.

Price: 29 500 rubles*

Catalog download

* - Цена, указанная на сайте, актуальна на момент размещения информации. Для получения актуального предложения отправьте заявку.

Description
Equipment

Metal outdoor insulated cabinets are designed to house I&C instruments, network devices and other equipment operating at positive temperatures. The cabinets protect the equipment from precipitation, dust, chemicals, physical damage, unauthorised access and theft.
The design of the cabinets allows electric heaters to be used. This protects the equipment from low temperatures and condensation.
The cabinets are made in UHL1 version per GOST 15150, designed to operate at temperatures from -60°C to +45°C. A climatic version of the cabinet design is possible to order. Degree of protection against climatic effects IP65 per GOST 14254.

The cabinet package includes:
1. Body with overall dimensions (H×W×D) 500×500×300 mm, protection class IP65, front metal thickness 1,5 mm, inner 1,0 mm, material – steel sheet St3;
2. Insulation – mineral wool insulation boards 50 mm thick;
3. Grey polymer powder coating RAL7035;
4. Door with window 200×200 mm – 1 pcs.;
5. Wall mounting – 2 pcs.;
6. DIN rail 350 mm – 1 pcs.;
7. Concealed Oskar hinges;
8. Triangular-key lock – 1 pcs.;
9. Holes for 20,7 mm cable glands – 6 pcs.;
10. Packaging: bubble wrap + corrugated cardboard.
