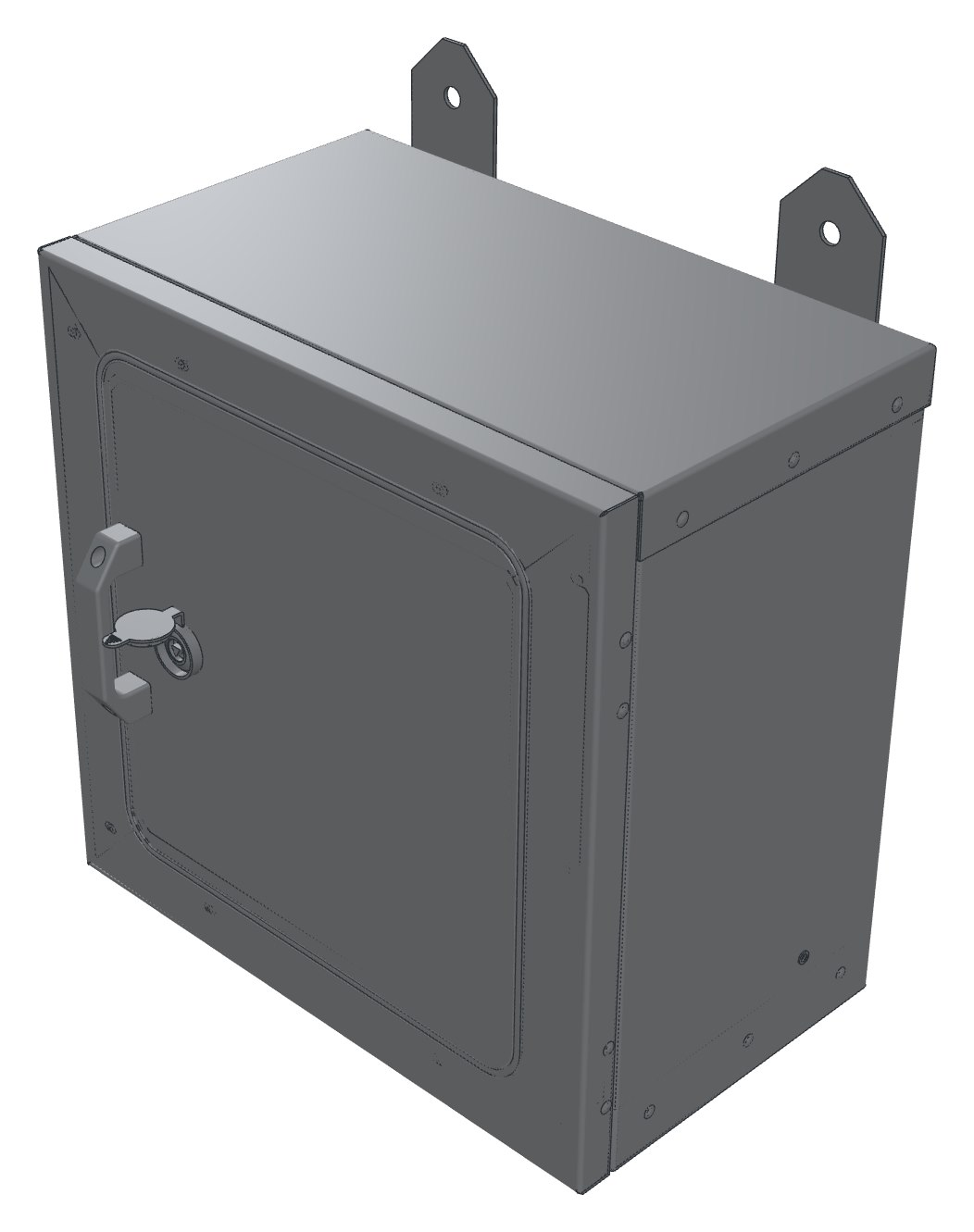

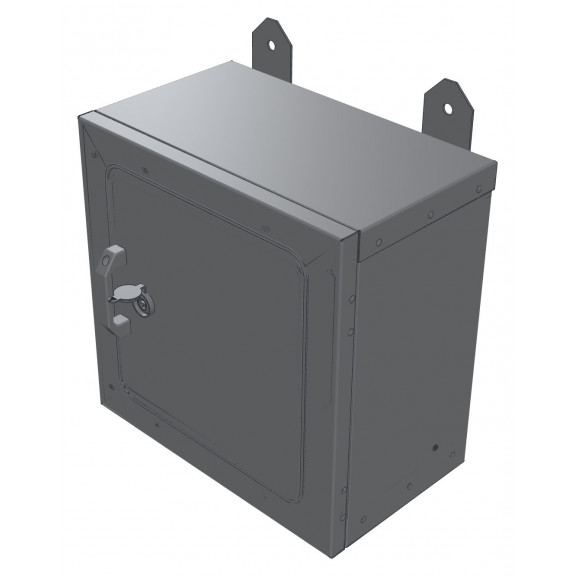

Sfera ShU-500x500x300-1-2-IP54 cabinet

Equipment

1. Body 500×500×300 mm, protection class IP54, galvanised metal (front 2,0 mm, inner 1,5 mm);
2. Door with a gasket around the perimeter, a handle and a key lock;
3. Canopies for wall fixing — 4 pcs;
4. Insulation — mineral (rock) wool 50 mm;
5. Oskar gasket and fittings;
6. Polymer powder coating RAL 7035 textured finish;
7. DIN rail (installed on site);
8. Earthing wire;
9. Cable glands;
10. Packaging: bubble wrap + corrugated cardboard + crate.

Area of application

The ShU 500×500×300 insulated outdoor cabinet is designed to house small-sized electrical and telecommunication equipment outdoors. The galvanised steel body with polymer powder coating and 50 mm mineral wool insulation reduces the effect of temperature changes, while the IP54 rating and the door with a gasket protect the contents from dust and atmospheric moisture. The internal volume and DIN rail make it possible to install a compact controller, metering devices, a modem or router, automation and terminal connections; the wall mounting on four brackets is intended for installation on a wall, facade or post.

Where it is used:

• Electricity metering and commercial resource metering points in utilities and the power industry
• Installation of modems, routers and subscriber communication equipment on posts and building facades
• Local automation and telemechanics cabinets as part of process control systems
• Outdoor lighting control cabinet equipment
• Instruments and sensors at water utility and boiler house facilities
• Power and switching for video surveillance and security alarm systems in open areas

Area of application

Inside the 500×500×300 mm body are housed electricity meters, circuit breakers, terminal blocks and small low-voltage equipment mounted on a DIN rail. This volume is enough for one or two metering points or a small automation panel with spare room for cable glands and earthing.

The galvanised body with polymer powder coating and a gasket around the door perimeter is installed on building facades, posts, fences and in places where equipment is exposed to precipitation and dust. The wall mounting and low weight simplify installation on existing structures without reinforcing the base.

Where it is used:

• electricity metering at the service entrance of private houses and small facilities;;
• housing metering devices on posts and facades in municipal utilities;;
• installing commercial metering points at the boundary of balance-sheet responsibility;;
• installing small automation panels at street lighting facilities;;
• housing switching equipment at production sites outside heated shops;;
• equipping auxiliary metering points at garden and country plots.
