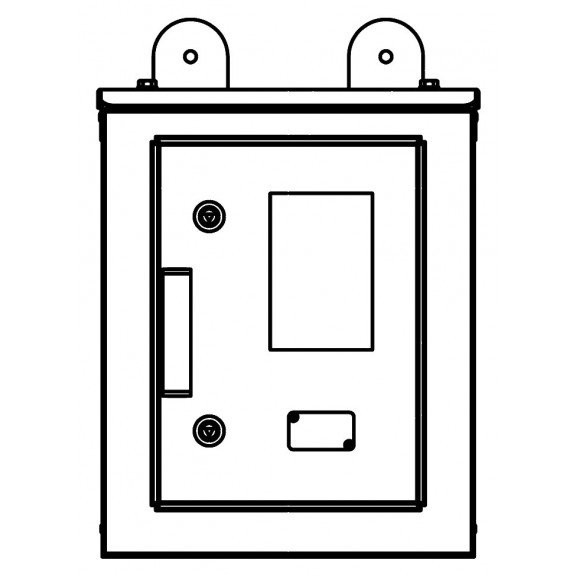

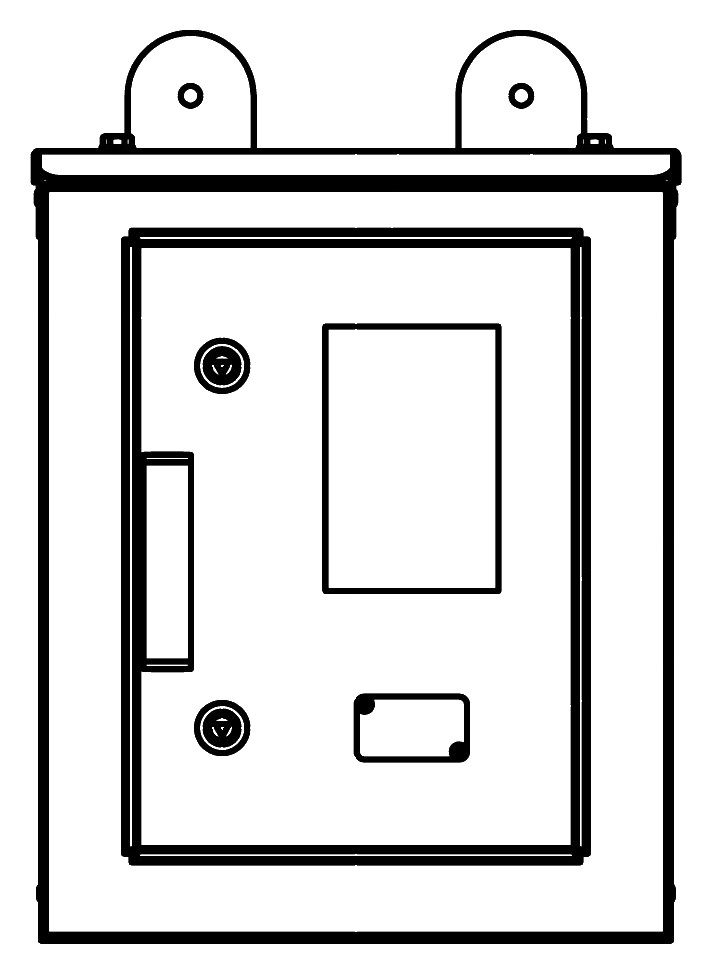

Sfera ShU 500×400×300 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The internal volume of the body holds 1–2 rows of modular breakers on a DIN rail (up to 6–8 modules) or a compact mounting panel with a small switching unit, a terminal block and glands for cable entries. This volume suits one simple metering device, low-current equipment or a control node that needs no redundancy and no large reserve of space.

The cabinet is installed outdoors or in unheated premises where protection from dust and water splashes is important. The small depth and weight allow the body to be mounted on a wall, post or structure without a reinforced frame, and the basic configuration – a door with a gasket and lock – provides sufficient sealing for everyday operation.

Where it is used:

• electricity metering point on a post or building facade;
• junction box for outdoor lighting of a territory;
• control panel for a small pump or valve at a local facility;
• housing low-current communication and video surveillance equipment outdoors;
• main distribution node for temporary power supply of a construction site;
• compact automation cabinet for a small process node in production.
