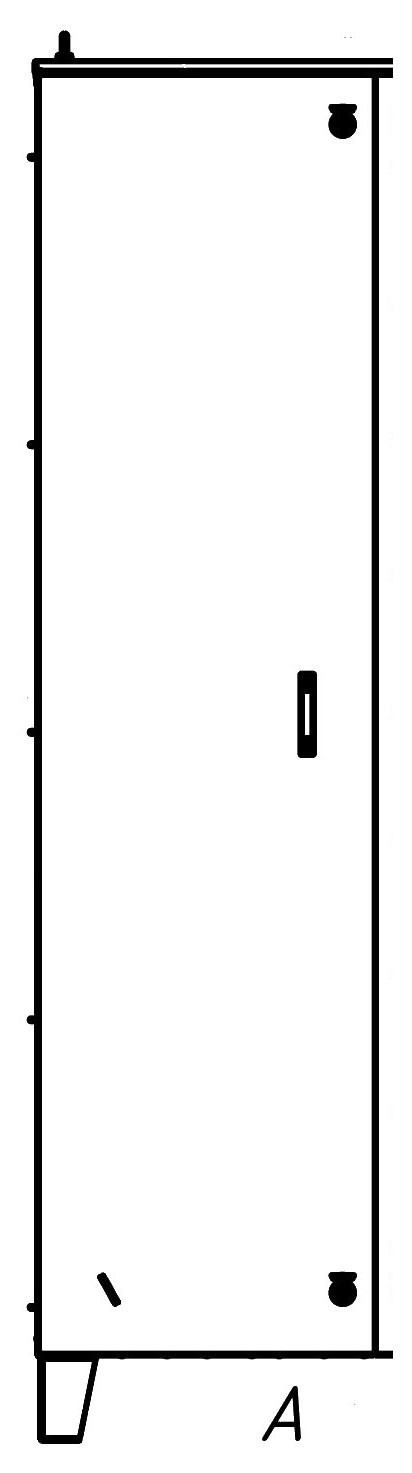

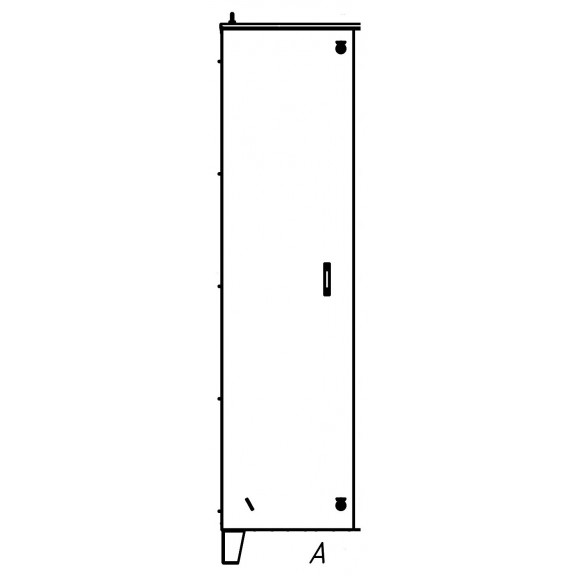

Sfera ShU 2300×1200×400 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The body dimensions allow a multi-section set of circuit breakers, main power devices, metering devices, terminal blocks and instrumentation to be housed, separated by functional zones. The depth of 400 mm gives room for routing cable runs and installing devices with add-ons, and the height of 2300 mm is convenient for organising several horizontal mounting levels.

The wall mounting and the insulated body with a gasketed door make the cabinet suitable for installation on open sites, posts, walls of buildings and structures without additional shelter. The cable glands provide sealed entry of power and low-current cables, and the polymer powder coating protects the metal from corrosion in long-term outdoor operation.

Where it is used:

• distribution points of low-voltage networks in open territories;
• electricity metering and commercial measurement nodes;
• control panels for outdoor lighting of streets and squares;
• power supply system equipment for industrial sites;
• main distribution device cabinets at utility infrastructure facilities;
• housing switching and protection equipment at transformer substations.
