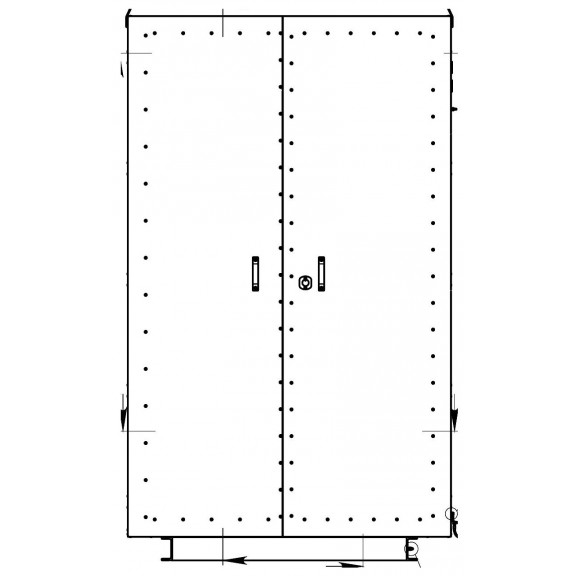

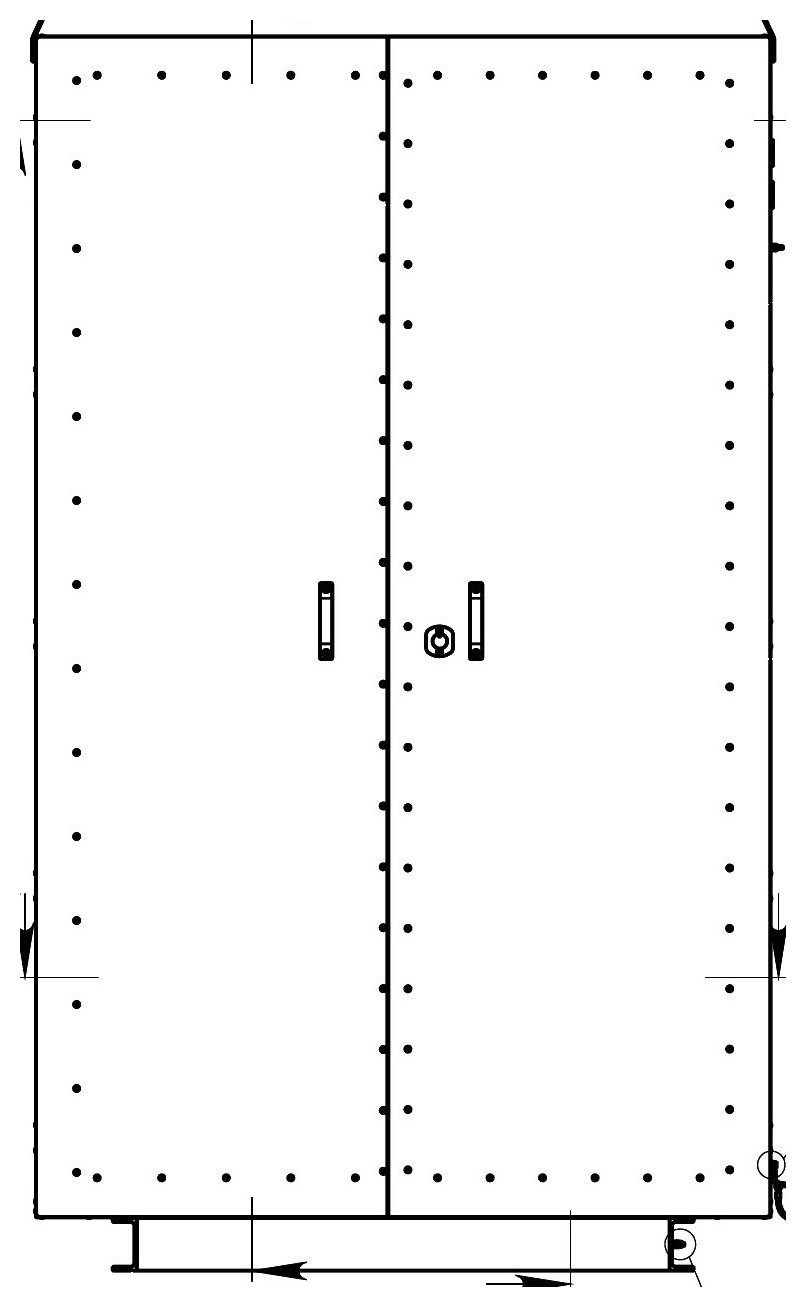

Sfera ShU 2250×1400×820 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Plinth or supports for floor installation

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The 2250×1400×820 mm cabinet holds several rows of mounting panels and DIN rails, which makes it possible to house two or three automatic incomers, distribution blocks, terminal groups and metering devices in one body. The width and depth of the body make it possible to arrange separate zones for power and low-current equipment, and the height of 2250 mm to install components on several levels with convenient access for maintenance.

Mineral wool 50 mm thick and a gasketed door protect the installed equipment from dust and moisture with floor installation on a plinth or supports. To order, the cabinet is supplemented with heating, ventilation, a thermostat, a canopy or an inspection window to suit specific site conditions.

Where it is used:

• combined main distribution boards for several consumers;
• metering and switching nodes for apartment and public buildings;
• distribution points of production and warehouse sites;
• cabinets for outdoor and street power supply systems with a large number of lines;
• places for housing dispatching and telemechanics equipment together with power units;
• enlarged distribution posts on utility networks and infrastructure facilities.
