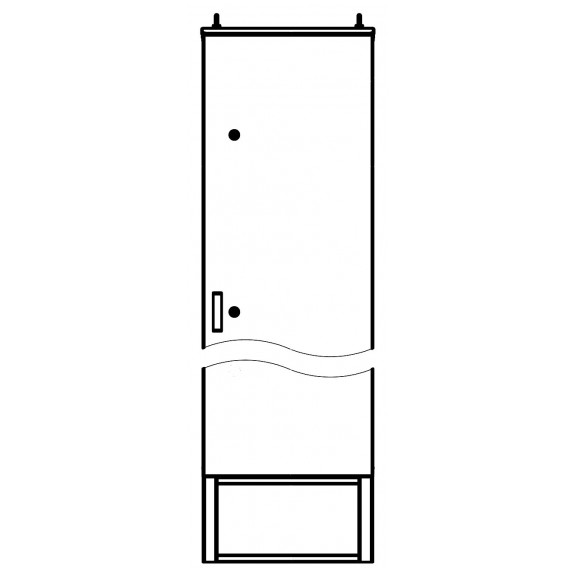

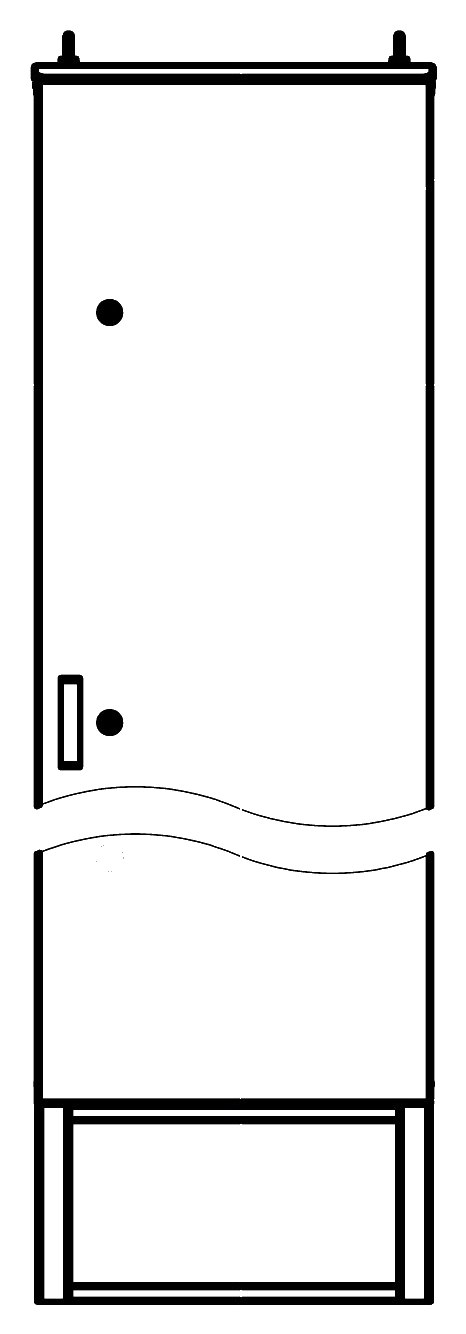

Sfera ShU 2000×600×800 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Plinth or supports for floor installation

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The dimensions of 2000×600×800 mm allow up to several dozen modular places on DIN rails to be housed in the cabinet, distributed across several mounting panels, and a full service-entrance/distribution with redundancy to be organised. The internal space is enough for service-entrance and electricity metering panels, power automation, communication nodes and low-current switching in one body, with a reserve for later expansion.

Floor installation on a plinth or supports relieves the walls of load and makes servicing of cable entries from below easier. The cable glands and the gasketed door with a lock provide protection when working on open sites; to order, the cabinet is supplemented with heating, ventilation, a thermostat or a canopy for specific operating conditions.

Where it is used:

• main distribution devices at substations and transformer points;
• electricity metering nodes for groups of consumers and production sites;
• automation cabinets for pumping stations and wastewater treatment plants;
• switching nodes for communication and dispatching at extended facilities;
• power and low-current equipment of outdoor lighting systems;
• distribution points on the territories of industrial and logistics complexes.
