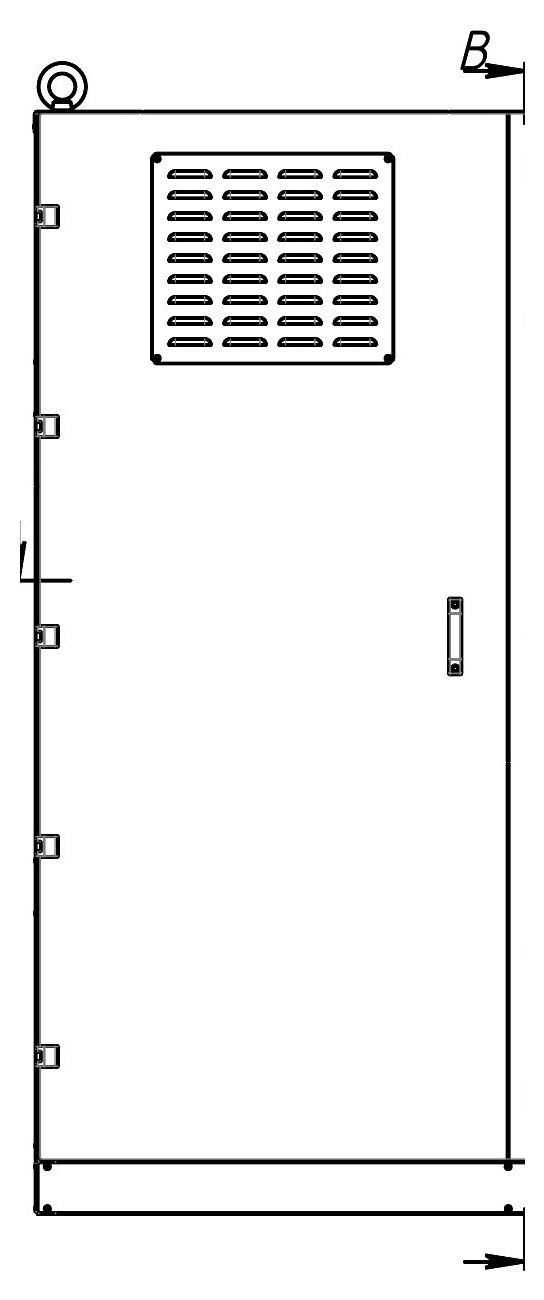

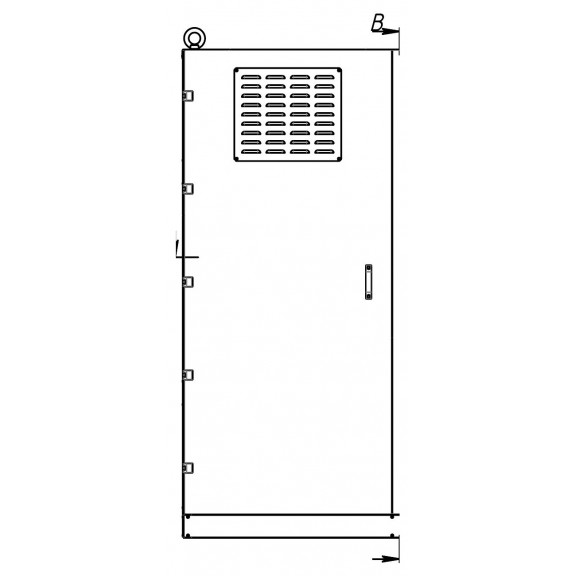

Sfera ShU 2000×1800×900 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The cabinet dimensions of 2000×1800×900 mm allow several automation panels, power and low-current equipment, and backup power sources to be housed in a single body on a common mounting panel or several DIN rails. The cable glands provide organised entry of many cable lines, and the door with a gasket and lock protects the contents from dust and moisture in open-air operation.

Mineral wool thermal insulation 50 mm and the IP54 protection rating make the cabinet suitable for installation in places with limited access for service personnel, where a bulky set of equipment must be housed in a single body. The wall mounting is convenient for installation on load-bearing walls, posts and steel structures without a separate foundation.

Where it is used:

• combined electricity metering and distribution panels at industrial sites;
• automation and telemechanics nodes at power industry facilities;
• control cabinets for pumping and ventilation units with redundancy;
• communication switching equipment at extended linear facilities;
• monitoring and control systems on water supply and heat supply utility networks;
• outdoor control posts for lighting and outdoor infrastructure.
